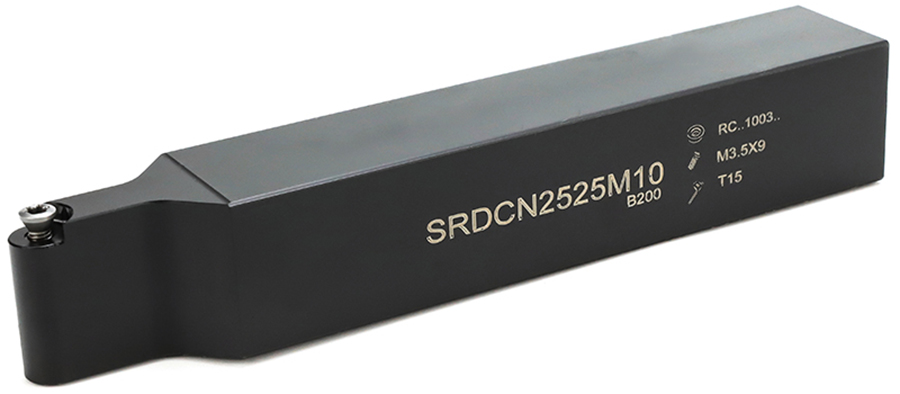

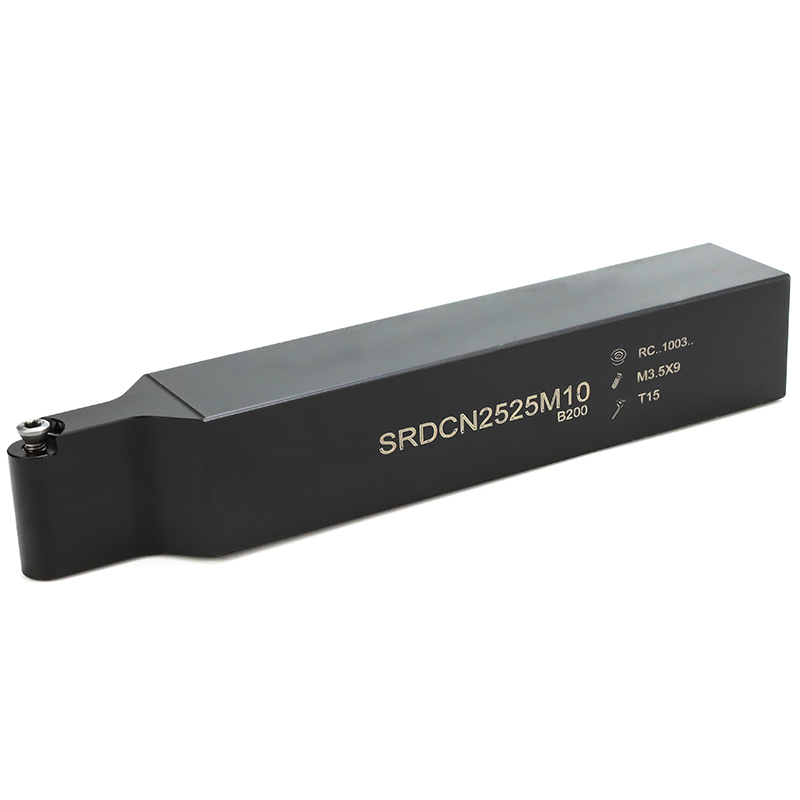

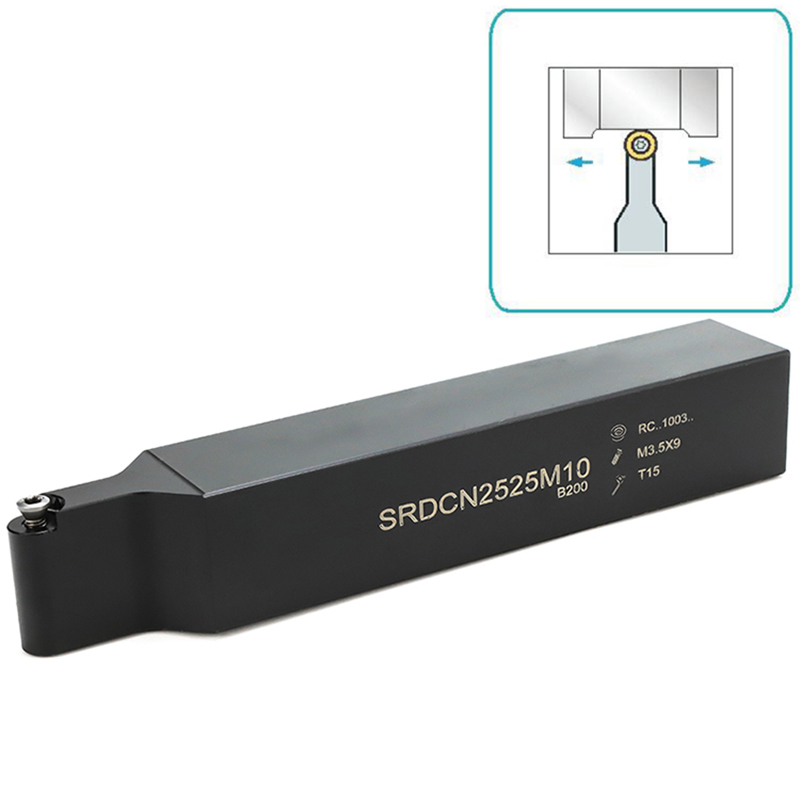

SRDCN2525M10
SANDHOG
Automation-Optimized Design: Features a reinforced structure and balanced geometry specifically engineered for automatic tool changing systems, ensuring smooth ATC operation and precise repeatable positioning cycle after cycle.
Positive Rake Cutting Efficiency: The RDCN configuration utilizes a positive rake geometry that reduces cutting forces by 20-30% compared to negative rake systems, minimizing power consumption and enabling higher feed rates while maintaining superior surface finishes.
Maximum Vibration Damping: The substantial 25×25 mm square shank combined with Sandhog's proprietary damping treatment provides exceptional resistance to chatter and vibration, allowing for heavier cuts and extended tool life in tough materials.
Advanced Pin-Lock Clamping System: The patented wedge-pin locking mechanism ensures absolute insert security while maintaining precise insert positioning (±0.05mm repeatability), crucial for consistent performance in automated production runs.
Enhanced Chip Control: Optimized geometry facilitates excellent chip formation and evacuation, preventing chip entanglement in automated systems—a critical feature for unmanned machining operations.
Coolant Optimization: Features integrated coolant channel compatibility for high-pressure coolant systems (up to 1000 psi), improving chip breaking and extending insert life in demanding materials.

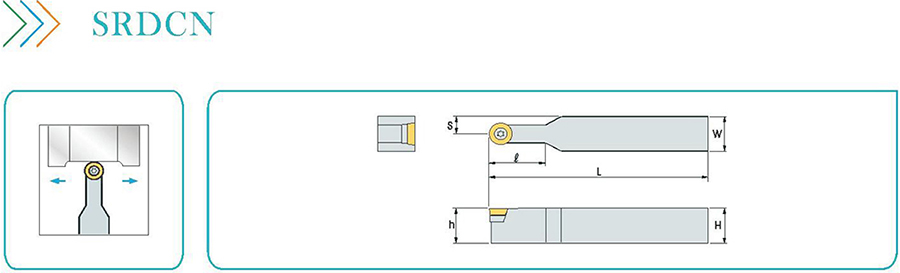

| ▷SRDCN | |||||||||
| Designation | size / Размер | Inserts | Screw | Wrench | |||||
| H | W | L | ℓ | h | s | ||||
| Тип | Пластины | винт | Ключ | ||||||
| SRDCN1616H08 | 16 | 16 | 100 | 16 | 16 | 8 | RC**0803** | M3X8 | T8 |
| SRDCN2020K08 | 20 | 20 | 125 | 16 | 20 | 10 | |||
| SRDCN2525M08 | 25 | 25 | 150 | 16 | 25 | 13 | |||
| SRDCN1616H10 | 16 | 16 | 100 | 20 | 16 | 8 | RC**1003** | M3.5X9 | T15 |
| SRDCN2020K10 | 20 | 20 | 125 | 20 | 20 | 10 | |||
| SRDCN2525M10 | 25 | 25 | 150 | 20 | 25 | 13 | |||
Company Information :
Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar ,Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert , Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.
Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!
Warmly Welcome you to have a visit of our factory .
Turning Tool Holder Shipping:
| Port | Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen | |
| Shipping | By Air ,By Sea or By Express | |
| Shipping Time | 4-10days By Express | Different Area many take different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading
holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their
spare parts.
Q: Can we use our own logo or design?
A: Yes, we provide OEM and ODM
Q: What is your MOQ?
A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.
Q: How can I get some samples?
A: We are willing to provide you samples for testing after receiving the sample fee.
Q: Do you accept custom orders?
A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
Automation-Optimized Design: Features a reinforced structure and balanced geometry specifically engineered for automatic tool changing systems, ensuring smooth ATC operation and precise repeatable positioning cycle after cycle.
Positive Rake Cutting Efficiency: The RDCN configuration utilizes a positive rake geometry that reduces cutting forces by 20-30% compared to negative rake systems, minimizing power consumption and enabling higher feed rates while maintaining superior surface finishes.
Maximum Vibration Damping: The substantial 25×25 mm square shank combined with Sandhog's proprietary damping treatment provides exceptional resistance to chatter and vibration, allowing for heavier cuts and extended tool life in tough materials.
Advanced Pin-Lock Clamping System: The patented wedge-pin locking mechanism ensures absolute insert security while maintaining precise insert positioning (±0.05mm repeatability), crucial for consistent performance in automated production runs.
Enhanced Chip Control: Optimized geometry facilitates excellent chip formation and evacuation, preventing chip entanglement in automated systems—a critical feature for unmanned machining operations.
Coolant Optimization: Features integrated coolant channel compatibility for high-pressure coolant systems (up to 1000 psi), improving chip breaking and extending insert life in demanding materials.
| ▷SRDCN | |||||||||
| Designation | size / Размер | Inserts | Screw | Wrench | |||||
| H | W | L | ℓ | h | s | ||||
| Тип | Пластины | винт | Ключ | ||||||
| SRDCN1616H08 | 16 | 16 | 100 | 16 | 16 | 8 | RC**0803** | M3X8 | T8 |
| SRDCN2020K08 | 20 | 20 | 125 | 16 | 20 | 10 | |||
| SRDCN2525M08 | 25 | 25 | 150 | 16 | 25 | 13 | |||
| SRDCN1616H10 | 16 | 16 | 100 | 20 | 16 | 8 | RC**1003** | M3.5X9 | T15 |
| SRDCN2020K10 | 20 | 20 | 125 | 20 | 20 | 10 | |||
| SRDCN2525M10 | 25 | 25 | 150 | 20 | 25 | 13 | |||
Company Information :
Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar ,Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert , Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.
Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!
Warmly Welcome you to have a visit of our factory .
Turning Tool Holder Shipping:
| Port | Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen | |
| Shipping | By Air ,By Sea or By Express | |
| Shipping Time | 4-10days By Express | Different Area many take different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading
holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their
spare parts.
Q: Can we use our own logo or design?
A: Yes, we provide OEM and ODM
Q: What is your MOQ?
A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.
Q: How can I get some samples?
A: We are willing to provide you samples for testing after receiving the sample fee.
Q: Do you accept custom orders?
A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
