Sandhog Tungsten Carbide Inserts:
CNC - Ready & Durable
Sandhog Tungsten Carbide Inserts: CNC - Ready & Durable

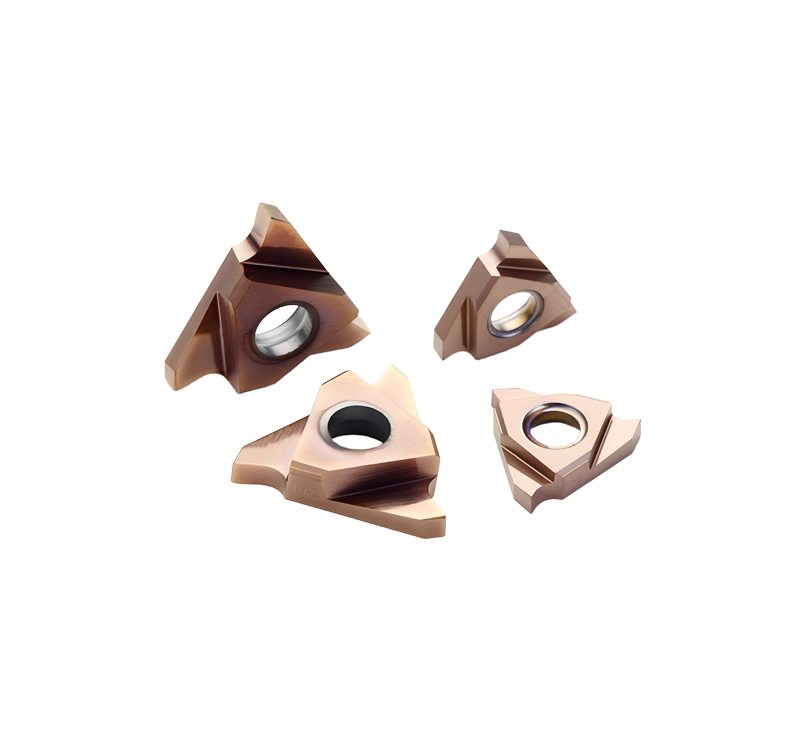

Sandhog Tungsten Carbide Inserts are premium grooving tools built for CNC machining. Made with high-quality tungsten carbide, they offer exceptional durability and wear resistance, ensuring consistent performance in heavy-duty cutting.
These inserts deliver precise cuts with minimal vibration, reducing waste and boosting workpiece quality. Designed for convenience, they feature easy tool changes to minimize downtime and compatibility with various holders, adapting seamlessly to different CNC setups.
Ideal for both small batches and large production runs, they combine precision, durability, and versatility to enhance machining efficiency.
Product Center
Welcome to Sandhog Tungsten Carbide Inserts! We are an enterprise committed to offering high-quality,
CNC-ready grooving solutions for machining professionals and manufacturers.
Product Advantages
Basic Information

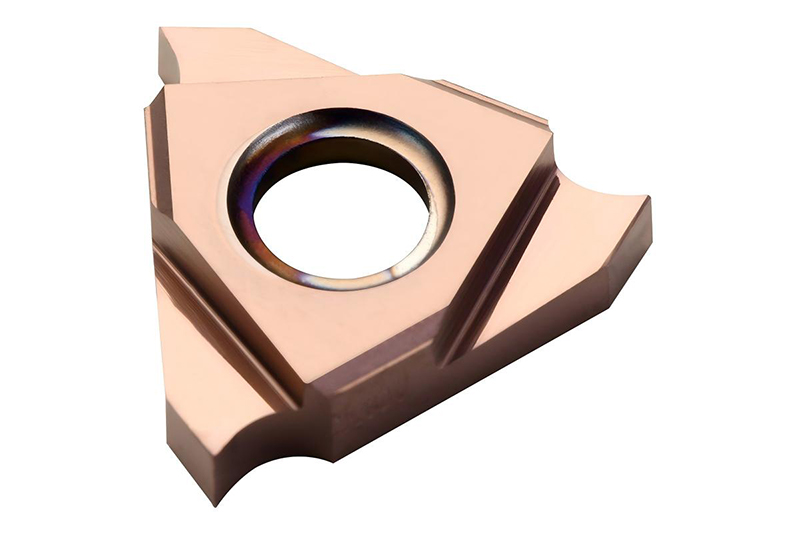

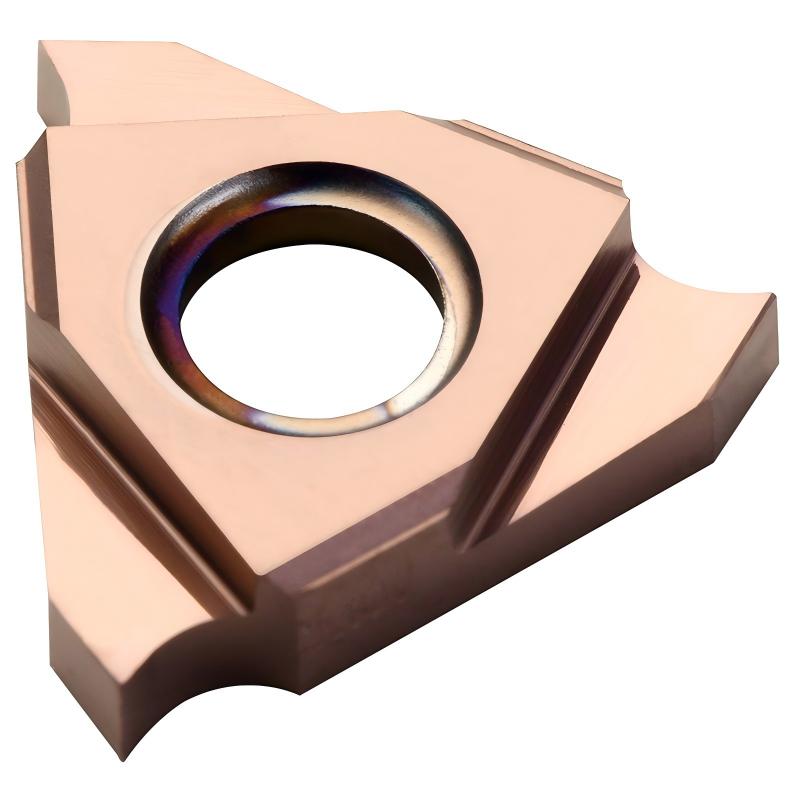

This type of tungsten carbide insert is designed for CNC machining and excels in grooving operations, suitable for both small-batch production and large-scale manufacturing. It includes various specifications to meet the needs of different cutting scenarios and workpiece materials.
Dimension : Customizable (OEM design available)
Color : Metallic silver (custom colors available upon request)
Packing : Anti-rust paper, Carton
Technical Specifications
Material & Composition
Base Material: High-grade tungsten carbide (WC-Co alloy)
Cobalt Content: 6-10% (optimized for balance of hardness and toughness)
Grain Size: Fine-grained structure (0.8-2.0μm) for enhanced wear resistance
Coating Option: TiAlN coating available (for improved heat resistance and reduced friction)

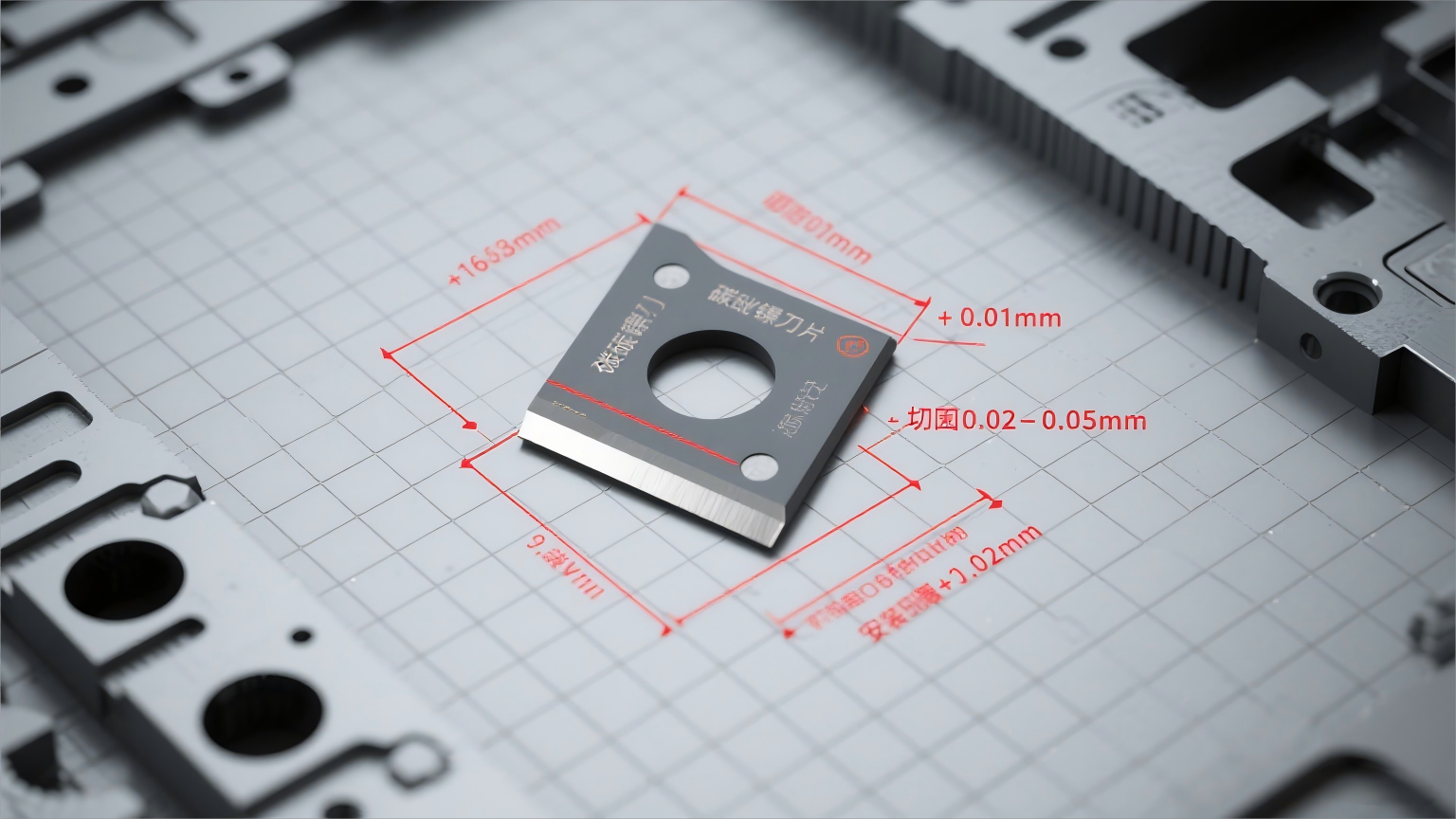

Dimensional Tolerances
Insert Thickness: ±0.01mm
Cutting Edge Radius: 0.02-0.05mm (depending on insert model)
Overall Length/Width: Customizable per OEM requirements (standard range: 5-20mm)
Mounting Hole Diameter: ±0.02mm (for compatible holders)
Performance Parameters
Maximum Operating Temperature: Up to 800°C (with coating); 600°C (uncoated)
Cutting Speed Range: 80-300m/min (varies by workpiece material)
Hardness: 90-92 HRA (Rockwell Hardness Scale)
Chipping Resistance: Excellent under intermittent cutting conditions
Application
Suitable Materials
Effective for grooving on steel, stainless steel, cast iron, aluminum, copper, alloys, and composite materials.
Applicable Industries
Widely used in automotive manufacturing, aerospace, general engineering, and metalworking workshops.
Machining Scenarios
Ideal for internal grooving, external grooving, face grooving, and slotting, suitable for both small-scale production and mass manufacturing.
FAQS
Q: Can the tool handle both internal and external grooving on hard materials?
Q: Is it suitable for small-batch custom production?
Q: Does slotting require additional adjustments compared to grooving?
