Sandhog Boring bar for metal processing Boring bar

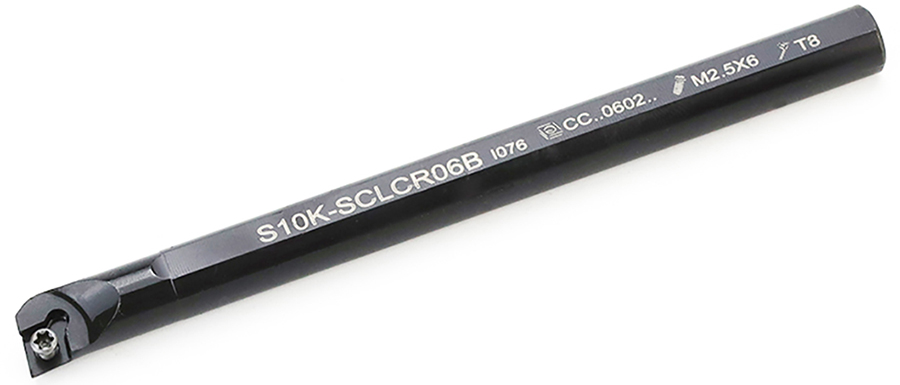

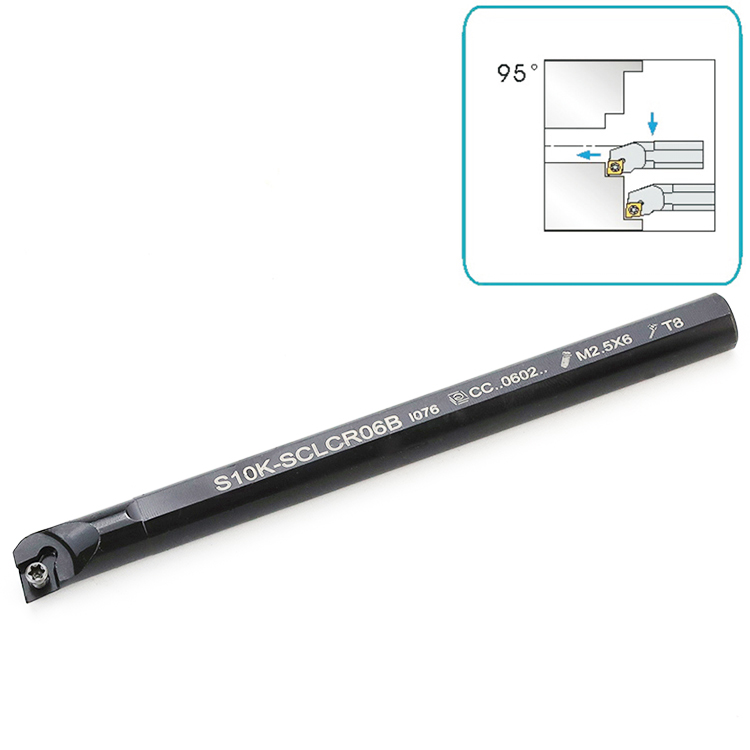

The S10K-SCLCR06 is part of Sandhog's premium "Silencer" series, designed to combat chatter—the number one enemy of bore quality and tool life. Its tuned mass damper system effectively absorbs vibrational energy, enabling you to push parameters further than with a standard solid bar. The classic clamp-style (SCLCR) head provides secure, straightforward insert locking for reliable performance.

Key Features & Benefits

Anti-Vibration Damping Technology: An internal tuned mass damper significantly reduces chatter and vibration, resulting in:

• Improved surface finish and bore geometry.
• Ability to use longer overhangs (up to 6x diameter) without sacrificing stability.
• Reduced audible noise and increased operator comfort.
• Extended tool life and insert longevit
• High-Strength Steel Body: Provides the optimal balance of toughness, rigidity, and damping characteristics, making it ideal for roughing to semi-finishing operations.

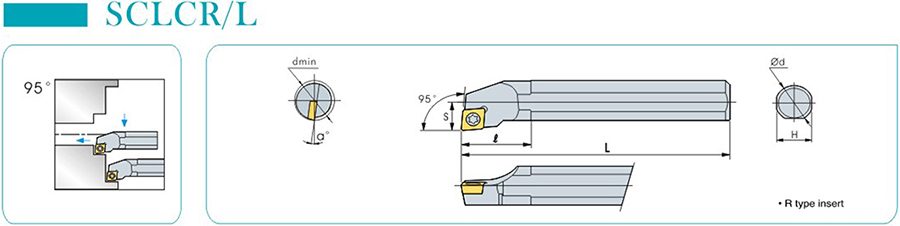

• SCLCR Clamp Design: Features a simple, strong, and proven clamping mechanism for positive insert seating and easy, fast indexing. Minimizes insert movement for consistent accuracy.
• Coolant Through Capability: Designed for through-tool coolant delivery (optional on some models; confirm specification). Directs high-pressure coolant precisely to the cutting edge, improving chip evacuation, reducing heat, and enhancing performance in deep-hole applications.
• Precision Ground Shank: The S10K designation indicates a 1-inch (25.4 mm) diameter precision ground shank, ensuring perfect fit and minimal runout in high-quality CNC tool holders.
• Optimized for CNMG/CNGG Inserts: Utilizes industry-standard 80° diamond (CNMG) style inserts, offering a wide range of geometries, grades, and corner radii for maximum versatility across different materials and operations.

Company Information :

Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar , Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert , Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.

Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!

Warmly Welcome you to have a visit of our factory .

Turning Tool Holder Shipping:

FAQ:
Q: Are you a factory or a trading company?

  A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading
holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their
spare parts.

Q: Can we use our own logo or design?

  A: Yes, we provide OEM and ODM

Q: What is your MOQ?

   A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.

 Q: How can I get some samples?

   A: We are willing to provide you samples for testing after receiving the sample fee.

 Q: Do you accept custom orders?

   A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
