Sandhog CNC Lathe Turning Part Tungsten Carbide Insert Indexable Cutting Tool Holder WTENN2525M22

  • WTENN2525M22


Introducing the Sandhog CNC Lathe Indexable Cutting Tool Holder, the perfect solution for all your cutting and turning needs. This top-of-the-line tool holder is designed to provide precision and accuracy in every cut, ensuring that your work is of the highest quality.

Crafted from the finest materials, this turning tool holder is built to last. Its durable construction ensures that it can withstand even the toughest of jobs, making it the ideal choice for professionals who demand the best.

With its advanced design, the Sandhog CNC Lathe Indexable Cutting Tool Holder is easy to use and highly efficient. Its cutting-edge technology allows for smooth and precise cuts, making it the perfect tool for a wide range of applications.

Whether you're working with stainless steel, steel or other materials, this turning tool holder is sure to deliver outstanding results. Its versatility and reliability make it an essential tool for any professional who wants to achieve the highest level of precision and accuracy in their work.

So if you're looking for a cutting tool that can deliver exceptional performance and quality, look no further than the Sandhog CNC Lathe Indexable Cutting Tool Holder. With its unbeatable combination of durability, precision, and efficiency, it's the perfect choice for any professional who demands the best.

W Type Turning Tool Holder Description :

1: Can be used on cnc lathe machine and engine lathe.

2: Matched with CNC inserts with hole.

3:Spare part made of high quality steel , the hardness of screw is grade 12.9.

4:Material 42CrMo and whole forging processing make the turning tool with long service life, better wear-resistantce, strength and rigidity,high working efficiency.

5:Using 0.02mm feeler gauge to insure the tightly connection between the inserts and the tool.

6:Adopt advanced heat treatment equipment, make sure the uniformity of the hardness(HRC43-47).

7: Processed with high precision CNC machining centre.

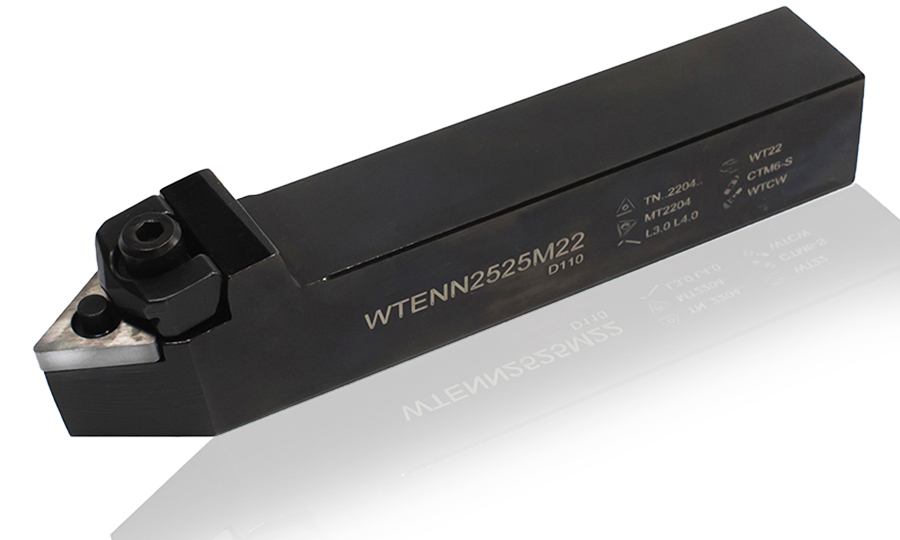

Cutting tool holder WTENN2525M22

型号             Designation 尺寸 size / Размер 刀片 刀垫 销钉 压板 塞环 螺钉 扳手
H W L h s Inserts Shim Pin Clamp Slopper ring Screw Wrench
Тип Пластины Прокладка Штырь Зажим Склонное кольцо винт Ключ
WTENN2020K16 20 20 125 34 20 10 TN**1604** MT16-S CTM5-S WT16 KH540 WTCW L2.5, L4.0
2525M16 25 25 150 35 25 12.5
2525M22 25 25 150 38 25 12.5 TN**2204** MT2204 CTM6-S WT22 KH540 WTCW L3.0, L4.0
3232P22 32 32 170 38 32 16

Boring bargrooving tool holderAutomatic holder 02end milling toolmilling cutterThreading insertsTurning insertturning insert 03

turning insert 02Carbide thread end mill 2Solid carbide Micro boring toolSandhog workshopSandhog tools

Company Information :

Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar , Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert , Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.

Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!

Warmly Welcome you to have a visit of our factory .

Turning Tool Holder Shipping:

Port Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen
Shipping     By Air ,By Sea or By Express
Shipping Time 4-10days By Express
Different Area many take different shipping days

7-15days By Air
25-55days By Sea
Trade Terms FOB, CIF, EXW, CFR, DDU...

Q: Are you a factory or a trading company?

  A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading
holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their
spare parts.

Q: Can we use our own logo or design?

  A: Yes, we provide OEM and ODM

Q: What is your MOQ?

   A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.

 Q: How can I get some samples?

   A: We are willing to provide you samples for testing after receiving the sample fee.

 Q: Do you accept custom orders?

   A: Of course, we are a professional manufacturer, and custom orders are what we are good at.

Ningbo Sanhan Alloy Materials Co., Ltd. was founded in 2004, It currently has the first automated production line for CNC turning tools in China, which can produce high-quality CNC turning tools without interruption 24 hours a day.
