MCKNR2525M12
SANDHOG

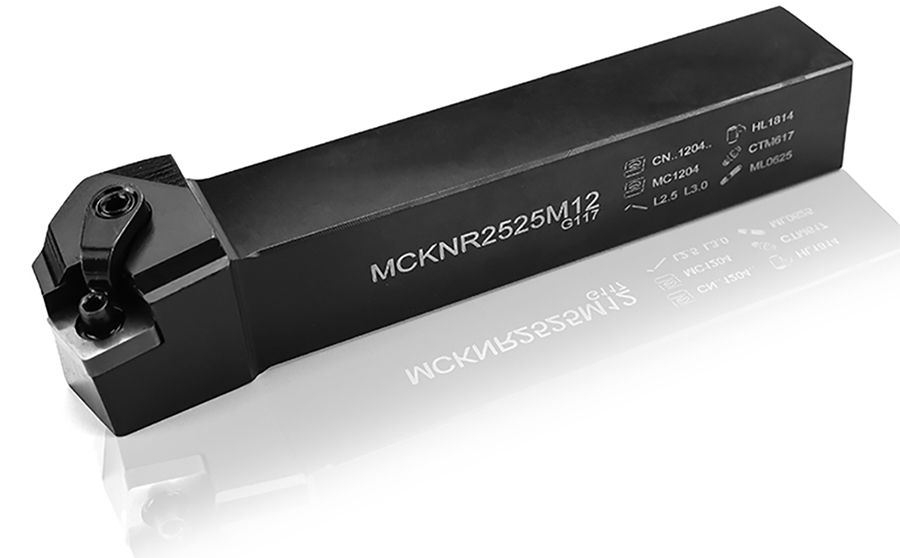

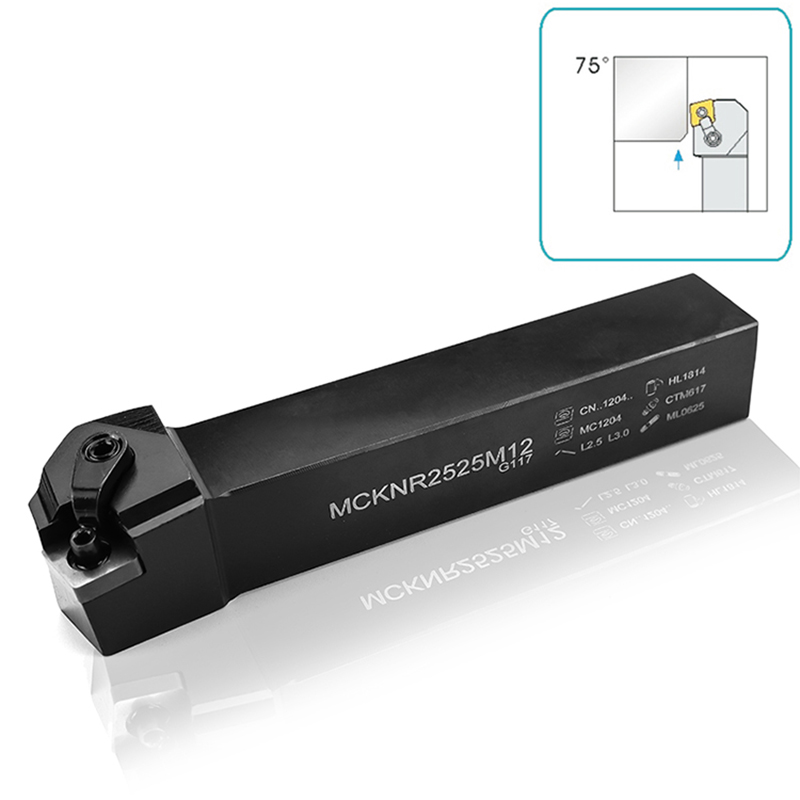

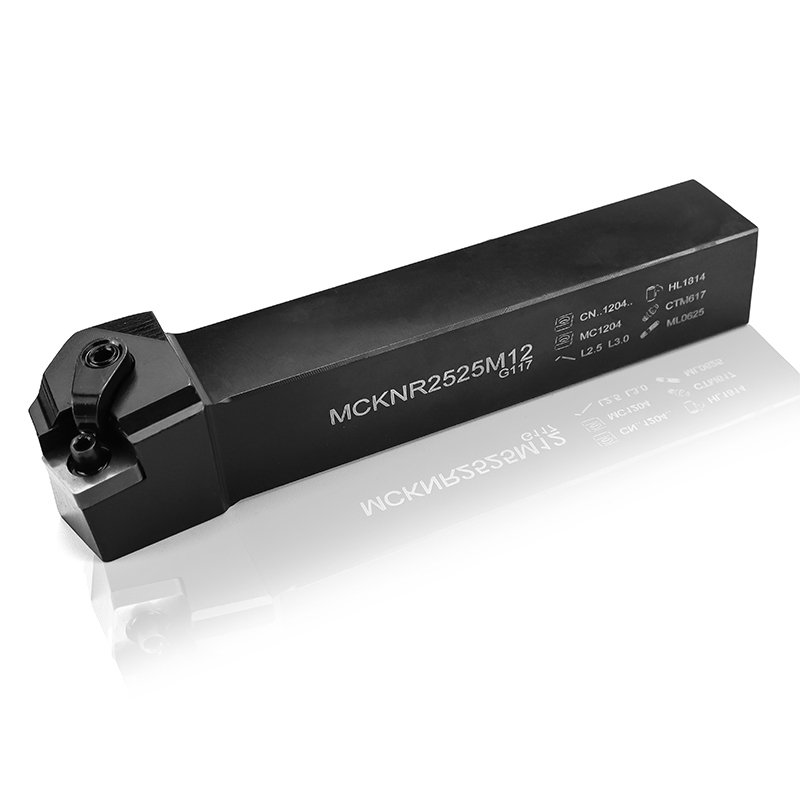

The Sandhog MCKNR2525M12 is a high-performance external turning tool holder designed for precision machining applications on CNC lathes and turning centers. This 75° cutting angle tool holder is engineered with robust materials and advanced manufacturing techniques to deliver exceptional stability, durability, and versatility in industrial machining operations.
Key Features
Superior Rigidity and Vibration Damping
Constructed from high-grade alloy steel and heat-treated for enhanced hardness, the MCKNR2525M12 minimizes tool deflection and vibration during heavy-duty cutting. The optimized geometry and reinforced clamping mechanism provide excellent resistance to chatter, ensuring improved surface finish and dimensional accuracy even in high-speed operations.
Compound Composite Clamp M-Type Design
The advanced clamp design securely holds the insert, minimizing tool wear and ensuring consistent cutting performance. This design allows for quick and secure insert changes, reducing downtime and increasing productivity.
Wide Insert Compatibility
The tool holder is compatible with standardized CNMG-style inserts (12 mm cutting edge), including CNXX1204, CNXX1606, and CNXX1906. This modularity makes it suitable for a wide range of materials, including steel, stainless steel, and cast iron.
Thermal and Wear Resistance
A specialized surface coating reduces friction and heat buildup, extending tool life in high-temperature machining environments. The negative rake angle design enhances chip control and tool life, making it ideal for demanding applications.
Precision Engineering
Processed with high-precision CNC machining centers, the tool holder offers excellent dimensional accuracy and smooth cutting performance. Precision-ground surfaces and clear identification markings simplify setup and alignment, reducing operator error.
Applications
Automotive Manufacturing: Suited for high-volume production of engine parts, transmission shafts, and brake components requiring tight tolerances
Energy Sector: Used in machining turbine blades, valve bodies, and other critical components for oil, gas, and power generation equipment
General Precision Engineering: Effective for machining stainless steel, cast iron, and non-ferrous metals in prototyping or custom part fabrication
The Sandhog MCKNR2525M12 turning tool holder combines cutting-edge engineering with user-centric design, offering reliability and efficiency across diverse industrial applications. Its ability to maintain precision under demanding conditions makes it an indispensable tool for modern metalworking facilities aiming to optimize performance and reduce operational costs.

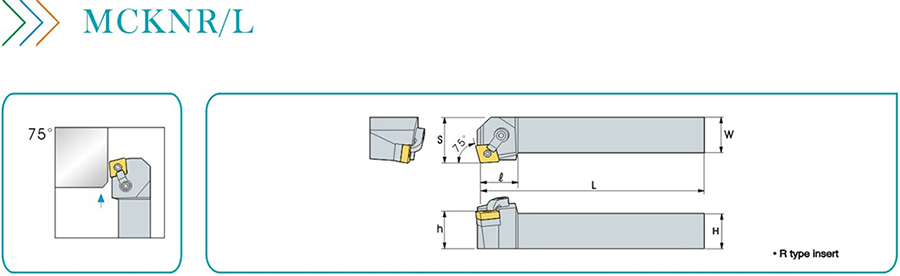

| MCKNR/L | ||||||||||||
| Designation | size / Размер | Inserts | Shim | Pin | Clamp | Screw | Wrench | |||||
| H | W | L | ℓ | h | s | |||||||
| Тип | Пластины | Прокладка | Штырь | Зажим | винт | Ключ | ||||||
| MCKNR/L2020K12 | 20 | 20 | 125 | 28 | 20 | 25 | CN**1204** | MC1204 | CTM617 | HL1814 | ML0625 | L2.5, L3.0 |
| MCKNR/L2525M12 | 25 | 25 | 150 | 28 | 25 | 32 | ||||||
| MCKNR/L3232P12 | 32 | 32 | 170 | 35 | 32 | 40 | ||||||
| MCKNR/L3232P16 | 32 | 32 | 170 | 35 | 32 | 40 | CN**1606** | MC1604 | CTM822 | HL2217 | ML0830 | L3.0, L4.0 |
| MCKNR/L3232P19 | 32 | 32 | 170 | 38 | 32 | 40 | CN**1906** | MC1904 | CTM1022 | HL2217 | ML0830 | L4.0 |
Company Information :
Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar ,Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert ,Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.
Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!
Warmly Welcome you to have a visit of our factory .
Turning Tool Holder Shipping:
| Port | Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen | |
| Shipping | By Air ,By Sea or By Express | |
| Shipping Time | 4-10days By Express | Different Area many take different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their
spare parts.
Q: Can we use our own logo or design?
A: Yes, we provide OEM and ODM
Q: What is your MOQ?
A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.
Q: How can I get some samples?
A: We are willing to provide you samples for testing after receiving the sample fee.
Q: Do you accept custom orders?
A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
