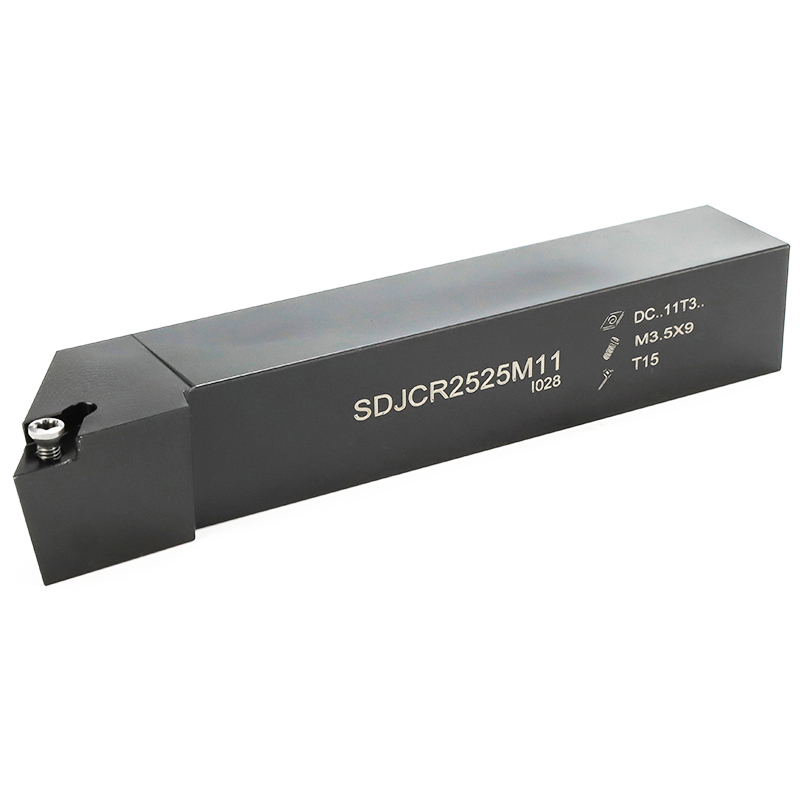

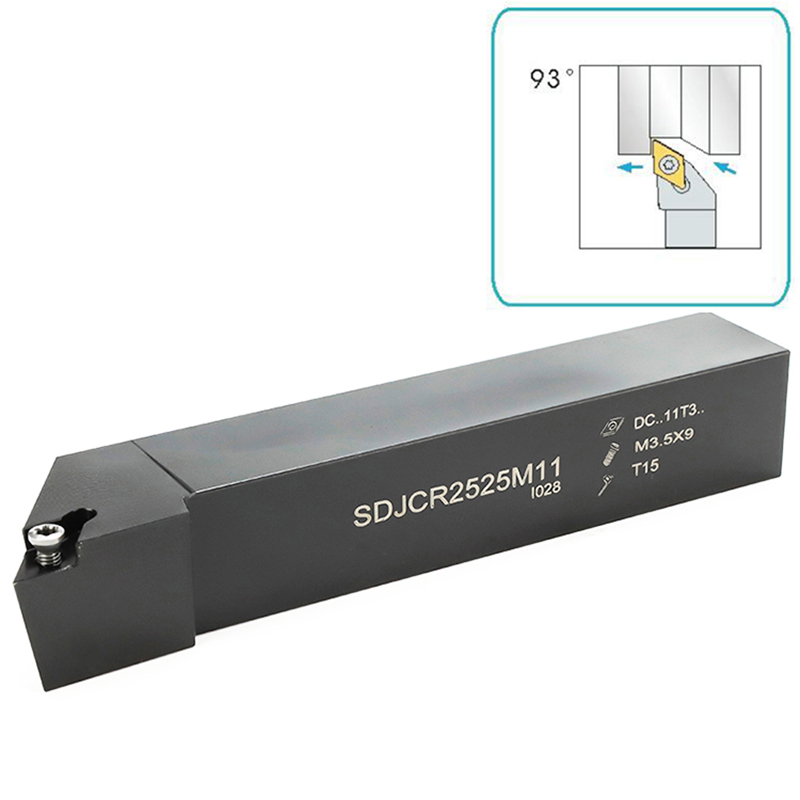

SDJCR2525M11
SANDHOG
Ultra-Rigid Negative Rake Design: The "CR" geometry utilizes a strong, negative rake angle that provides maximum edge strength and support for the cutting insert. This design is ideal for heavy cuts, high-feed operations, and applications involving shock or intermittent cutting.
Heavy-Duty 25x25mm Shank: The large, square 25mm x 25mm shank provides unparalleled stability and vibration damping. This mass effectively absorbs cutting forces, minimizes deflection, and allows for significantly higher metal removal rates (MRR) compared to smaller shank sizes.
Advanced Top-Clamp Locking System ("J" Style): The integrated top-clamp mechanism (indicated by the "J" in the model) applies uniform, powerful downward force to secure the insert. This ensures absolute insert stability, prevents movement under heavy load, and facilitates quick, tool-less insert changes for reduced downtime.
Optimized for CNC Automation: Designed for seamless integration with CNC tool turrets and automatic tool changers (ATCs). Its balanced design and precise dimensions ensure repeatable positioning and trouble-free operation in automated production environments.
Enhanced Chip Evacuation: The holder's geometry is optimized to work with modern insert chipbreakers, promoting efficient chip formation and evacuation. This prevents chip jamming, protects the workpiece finish, and is critical for uninterrupted machining cycles.
Superior Construction: Manufactured from premium alloy steel, heat-treated, and precision-ground to micron-level tolerances. The result is exceptional wear resistance, long-term dimensional stability, and reliable performance over thousands of machining cycles.
| ▷SDJCR/L | |||||||||
| Designation | size / Размер | Inserts | Screw | Wrench | |||||
| H | W | L | ℓ | h | s | ||||
| Тип | Пластины | винт | Ключ | ||||||
| SDJCR/L1010F07 | 10 | 10 | 80 | 14 | 10 | 12 | DC**0702** | M2.5X8 | T8 |
| SDJCR/L1212F07 | 12 | 12 | 80 | 14 | 12 | 16 | |||
| SDJCR/L1616H07 | 16 | 16 | 100 | 14 | 16 | 20 | |||
| SDJCR/L1212F11 | 12 | 12 | 80 | 20 | 12 | 16 | DC**11T3** | M3.5X9 | T15 |
| SDJCR/L1616H11 | 16 | 16 | 100 | 20 | 16 | 20 | |||
| SDJCR/L2020K11 | 20 | 20 | 125 | 20 | 20 | 25 | |||
| SDJCR/L2525M11 | 25 | 25 | 150 | 22 | 25 | 32 | |||
| SDJCR/L3232P11 | 32 | 32 | 170 | 23 | 32 | 40 | |||
| SDJCR/L4040R11 | 40 | 40 | 200 | 25 | 40 | 50 | |||
Company Information :
Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar ,Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert , Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.
Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!
Warmly Welcome you to have a visit of our factory .
Turning Tool Holder Shipping:
| Port | Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen | |
| Shipping | By Air ,By Sea or By Express | |
| Shipping Time | 4-10days By Express | Different Area many take different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading
holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their
spare parts.
Q: Can we use our own logo or design?
A: Yes, we provide OEM and ODM
Q: What is your MOQ?
A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.
Q: How can I get some samples?
A: We are willing to provide you samples for testing after receiving the sample fee.
Q: Do you accept custom orders?
A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
