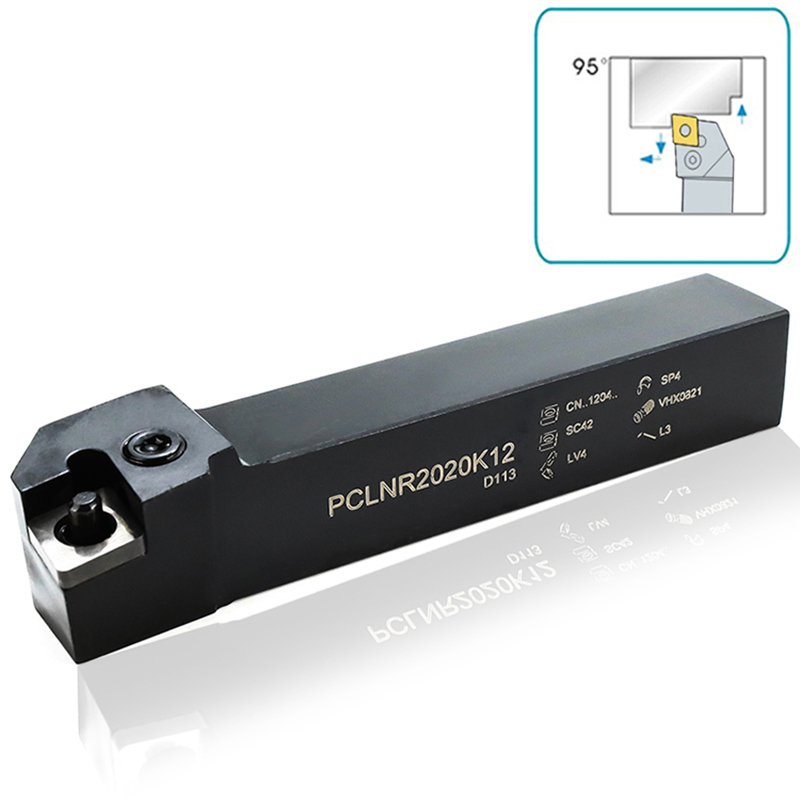

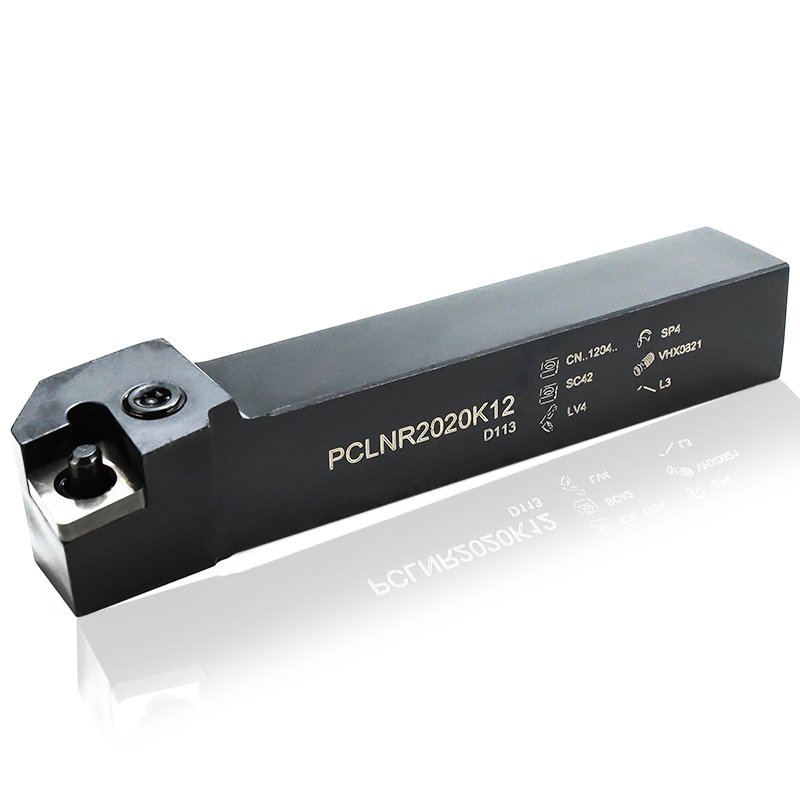

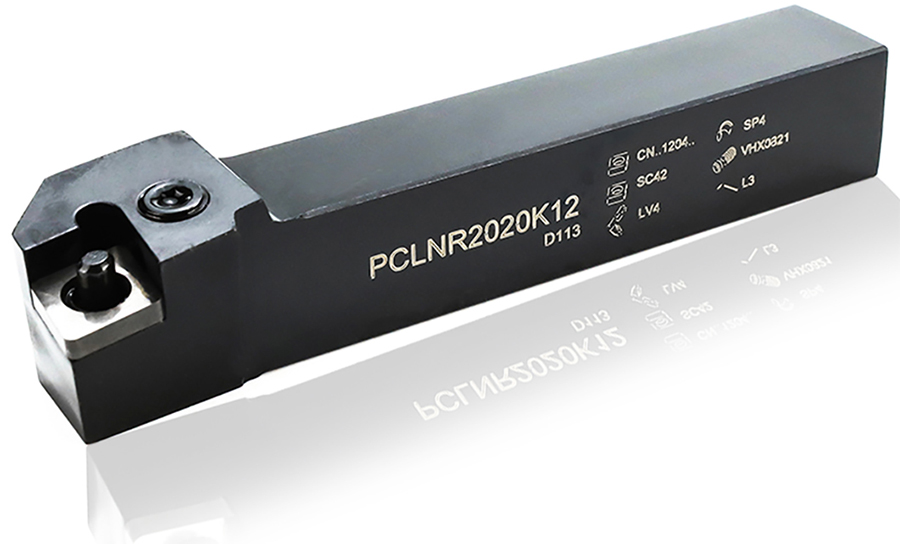

Sandhog High precision CNC turning Turning tool for external cutting Turning tool holder

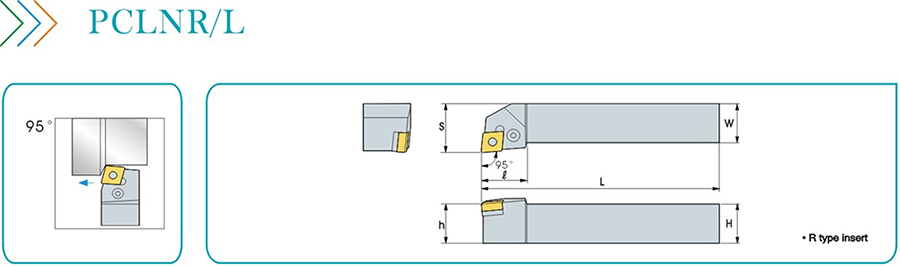

95° Lead Angle (PCLNR Style): The PCLNR geometry offers a 95° approach angle, providing superior access to shoulders and excellent chip control. This design is particularly effective for general turning, facing, and profiling operations where chip evacuation and surface finish are paramount.

Quick-Change Compatibility: Fully integrates with Sandhog and industry-standard quick-change tool post systems, enabling tool changes in seconds. This feature drastically reduces machine downtime during setups and changeovers, maximizing productivity in production environments.

Superior Rigidity & Stability: Constructed from high-grade 42CrMo alloy steel with precision CNC machining and heat treatment (HRC43-47 hardness), the holder ensures maximum vibration damping and minimal deflection. This rigidity allows for higher metal removal rates and improved surface finish quality.

K-Type Top Clamp Mechanism: Features a reliable and easy-to-use K-type clamp for secure insert retention. The clamp design ensures consistent seating force and simplifies insert indexing, with a 0.02mm feeler gauge used to verify tight connection between insert and tool.

Negative Rake, 80° Diamond Inserts: Utilizes industry-standard CNMG 1204 inserts (12.7mm IC size), offering 80° point angle for versatile turning applications. The negative rake geometry provides a stronger cutting edge, ideal for heavy roughing and stable finishing on a wide range of materials.

Excellent Chip Clearance: The P-style design provides ample space for chip flow, preventing chip jamming and ensuring smooth machining operations, especially in deep cuts or high-feed applications.
