S10K-SCLCR06-A16
Sandhog

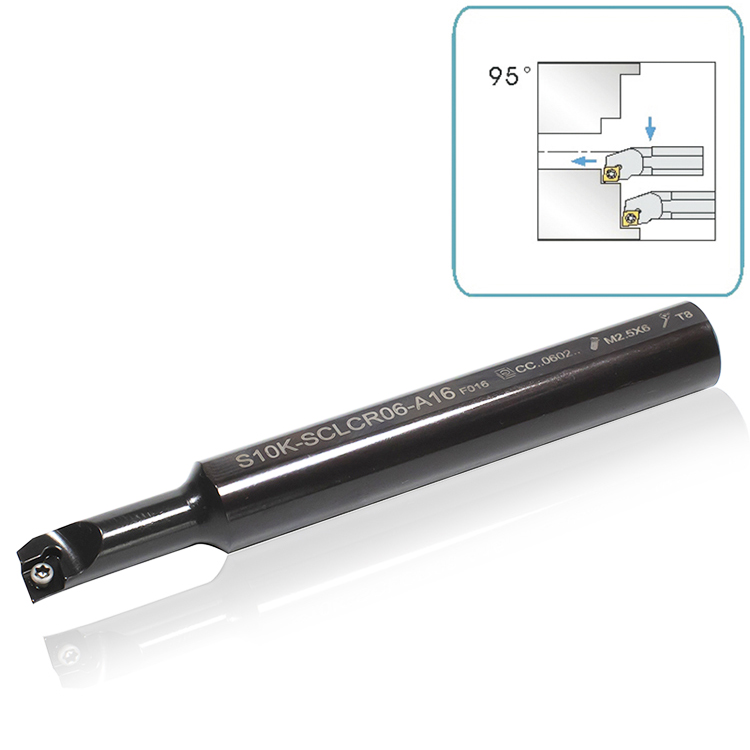

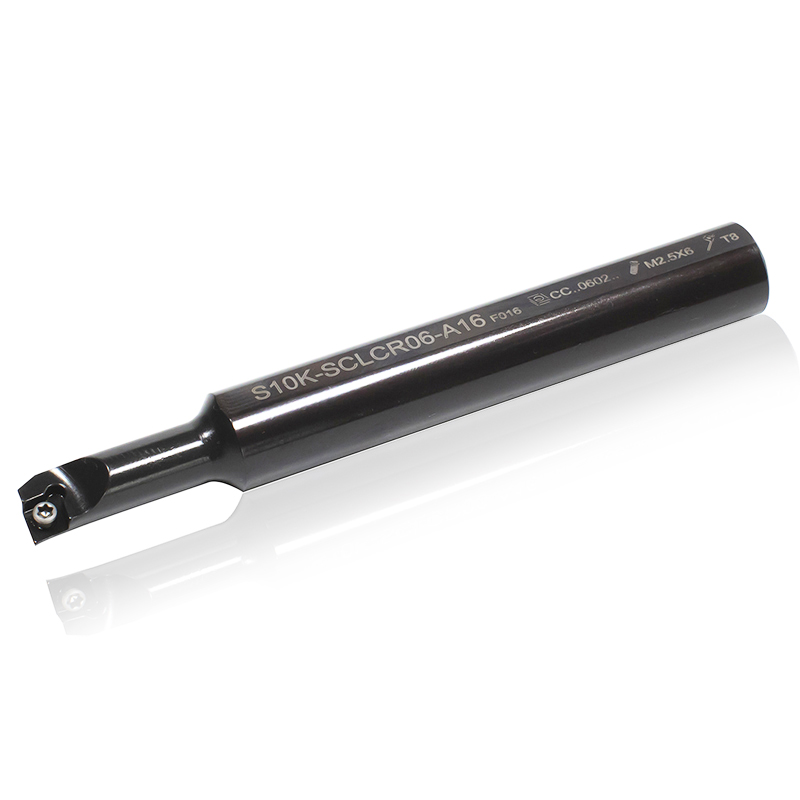

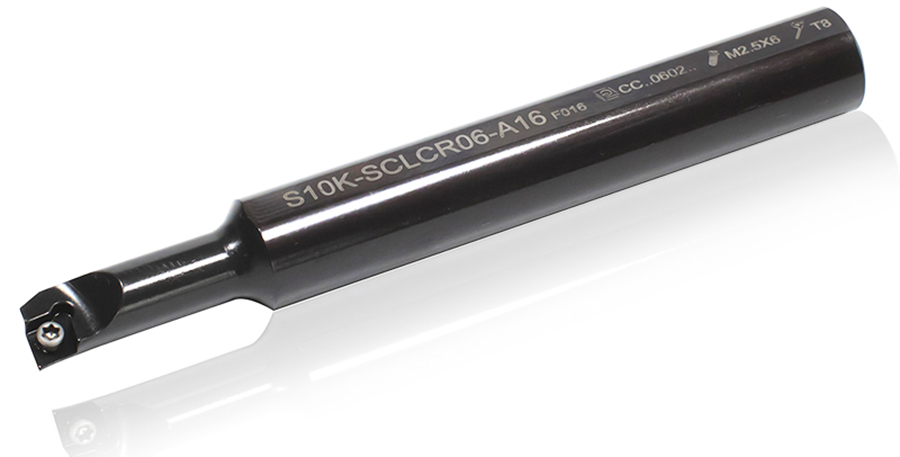

S Type Boring bar Description :
1: Can be used on cnc lathe machine and engine lathe .
2: Matched with CNC inserts with hole .
3:Spare part made of high quality steel , the hardness of screw is grade 12.9
4:Material 42CrMo and whole forging processing make the turning tool with long service life, better wear-resistantce,
strength and rigidity,high working efficiency.
5:Using 0.02mm feeler gauge to insure the tightly connection between the inserts and the tool .
6:Adopt advanced heat treatment equipment, make sure the uniformity of the hardness(HRC43-47)
7: Processed with high precision CNC machining centre.
| ▷ SCLCR/L | ||||||||||
| 型号 Designation | 尺寸 size / Размер | 刀片 | 螺钉 | 扳手 | ||||||
| dmin | φd | S | L | ℓ | H | α° | Inserts | Screw | Wrench | |
| Тип | Пластины | винт | Ключ | |||||||
| S07K-SCLCR/L06 | 9 | 8 | 4.2 | 125 | 18 | 7 | 15° | CC**0602 | M2.5X5 | T8 |
| S08K-SCLCR/L06 | 10 | 8 | 5 | 125 | 18 | 7 | 13° | |||
| S08K-SCLCR/L06-A16 | 10 | 16 | 5 | 125 | 24 | 15 | 13° | |||
| S10K-SCLCR/L06 | 12 | 10 | 6 | 125 | 22 | 9 | 12° | M2.5X6 | ||
| S10K-SCLCR/L06-A16 | 12 | 16 | 6 | 125 | 30 | 15 | 12° | |||
| S12M-SCLCR/L06 | 14 | 12 | 7 | 150 | 25 | 11 | 10° | |||
| S12M-SCLCR/L09 | 15 | 12 | 8 | 150 | 30 | 11 | 12° | CC**09T3** | M3.5X9 | T15 |
| S14M-SCLCR/L09 | 16 | 14 | 8 | 150 | 30 | 13 | 12° | |||
| S16Q-SCLCR/L09 | 19 | 16 | 9.5 | 180 | 34 | 15 | 10° | |||
| S20Q-SCLCR/L09 | 23 | 20 | 11.5 | 180 | 38 | 18 | 8° | |||
| S25R-SCLCR/L09 | 28 | 25 | 14 | 200 | 45 | 23 | 6° | |||
| S32S-SCLCR/L09 | 36 | 32 | 18 | 250 | 45 | 30 | 6° | |||
| S20Q-SCLCR/L12 | 24 | 20 | 12 | 180 | 42 | 18 | 8° | CC**1204** | M5.0X12 | T20 |
| S25R-SCLCR/L12 | 34 | 25 | 14.5 | 200 | 45 | 23 | 5° | |||
| S32S-SCLCR/L12 | 36 | 32 | 18 | 250 | 45 | 30 | 6° | |||
| S40T-SCLCR/L12 | 44 | 40 | 22 | 300 | 48 | 38 | 4° | |||
Company Information :
Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar , Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert , Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.
Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!
Warmly Welcome you to have a visit of our factory .
Turning Tool Holder Shipping:
| Port | Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen | |
| Shipping | By Air ,By Sea or By Express | |
| Shipping Time | 4-10days By Express | Different Area many take different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading
holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their
spare parts.
Q: Can we use our own logo or design?
A: Yes, we provide OEM and ODM
Q: What is your MOQ?
A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.
Q: How can I get some samples?
A: We are willing to provide you samples for testing after receiving the sample fee.
Q: Do you accept custom orders?
A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
