Sandhog Internal Cutting Tool Holder Indexable Toolholder Internal Boring Tool Boring Bar

Availability:
Quantity:
  • S20Q-MSKNR12

  • SANDHOG

**Lathe Boring Bar - Precision Internal Machining Tool for Optimal Performance**
The Lathe Boring Bar is an essential cutting tool designed for precision internal machining operations on CNC and manual lathes. Engineered for accuracy and durability, this tool delivers exceptional performance in boring, enlarging, and finishing internal diameters with tight tolerances.
**Key Features:**
- **High-Precision Design:** Manufactured from premium alloy steel for maximum rigidity and minimal vibration during operation
- **Advanced Insert Compatibility:** Supports industry-standard indexable carbide inserts (CCMT, DCMT, VBMT) for versatile machining applications
- **Optimized Geometry:** Features specialized flute designs and cutting edge preparations for improved chip control and surface finish
- **Coolant Through Capability:** Available with internal coolant channels for efficient heat dissipation and chip evacuation in deep-hole operations
- **Multiple Size Options:** Range of diameters (6-50mm) and lengths to accommodate various workpiece requirements
- **Enhanced Stability:** Anti-vibration design with precision-ground surfaces for reduced chatter and improved machining accuracy
**Performance Advantages:**
✓ Delivers superior surface finishes (Ra 0.8-1.6μm)
✓ Maintains dimensional accuracy within ±0.01mm
✓ Extends tool life through optimized cutting geometries
✓ Reduces machining time with efficient chip removal
✓ Suitable for both roughing and finishing operations
**Typical Applications:**
- Precision boring of engine cylinders and hydraulic components
- Internal machining of pipes and tubular workpieces
- Enlarging and finishing pre-drilled holes
- Complex internal contouring operations
- High-volume production environments

Available in various configurations including solid carbide, indexable, and adjustable models to suit specific machining requirements. Backed by rigorous quality control to ensure consistent performance in demanding manufacturing environments.

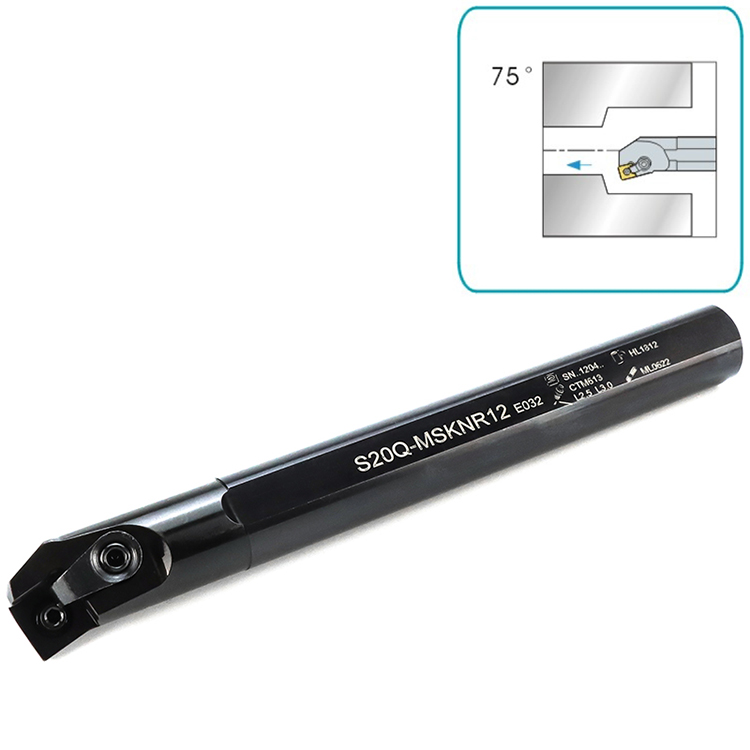

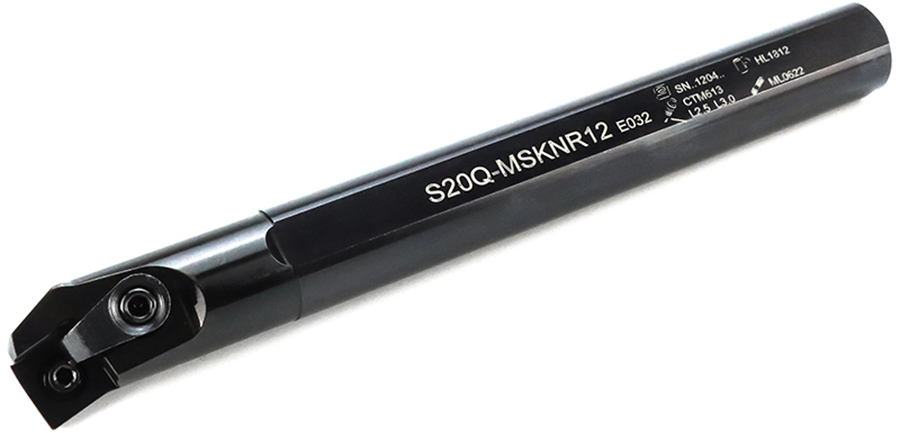

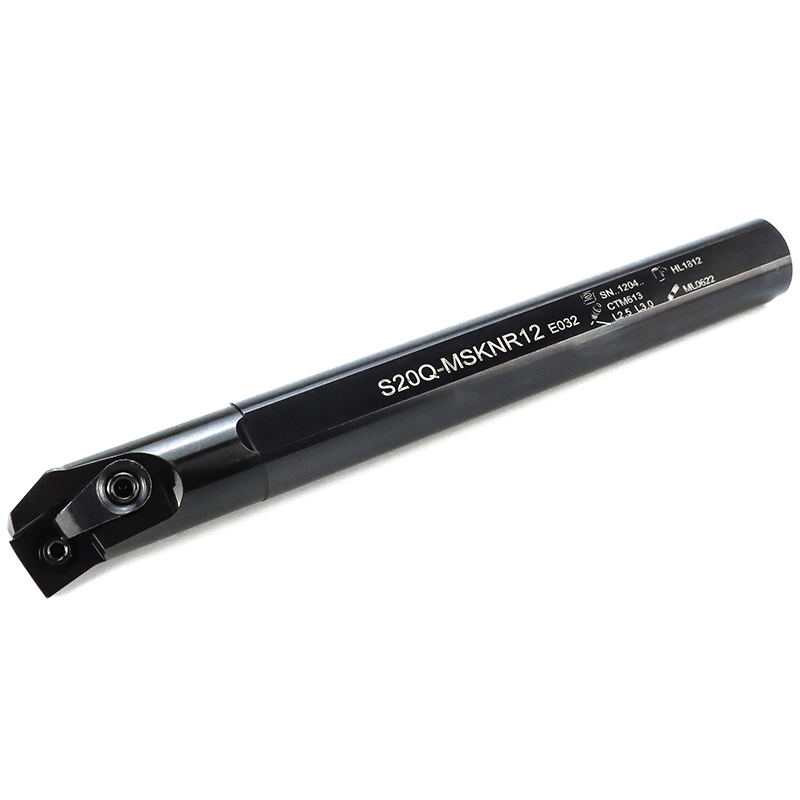

Boring bar S20Q-MSKNR12

MSKNR/L
Designation size / Размер Inserts Shim Pin Clamp Screw Wrench
Тип dmin φd s L H α° Пластины Прокладка Штырь Зажим винт Ключ
S20Q-MSKNR/L12 28 20 13 180 45 18 15° SN**1204** X CTM613 HL1812 ML0622 L2.5, L3.0
S25R-MSKNR/L12 34 25 17 200 45 23 13° HL1814 ML0625
S32S-MSKNR/L12 44 32 22 250 50 30 17° MS1204 CTM617
S40T-MSKNR/L12 54 40 27 300 50 38 15°
S50U-MSKNR/L12 62 50 34 350 70 48 12°
Boring bar grooving tool holder Cutting tool holder 01

U DRILLS

end milling toolmilling cuttergrooving insert TGFgrooving insert TDCThreading insertscarbide turning insertSandhog workshopSandhog tools

Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar, Threading Tool holder, Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert , Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.
Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!

Warmly welcome you to have a visit of our factory.

Turning Tool Holder Shipping:


Port Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen
Shipping By Air ,By Sea or By Express
Shipping Time 4-10days By Express Different Area many take different shipping days
7-15days By Air
25-55days By Sea
Trade Terms FOB, CIF, EXW, CFR, DDU...

FAQ:


Q: Are you a factory or a trading company?


A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their spare parts.

Q: Can we use our own logo or design?

A: Yes, we provide OEM and ODM

Q: What is your MOQ?

A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.

Q: How can I get some samples?

A: We are willing to provide you samples for testing after receiving the sample fee.

Q: Do you accept custom orders?

A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
