Sandhog Internal cutting tool holder with coolant holes Lathe boring bar

Availability:
Quantity:
  • S25R-AWLNR08

  • Sandhog

**Lathe Boring Bar - Precision Internal Machining Tool for Optimal Performance**
The Lathe Boring Bar is an essential cutting tool designed for precision internal machining operations on CNC and manual lathes. Engineered for accuracy and durability, this tool delivers exceptional performance in boring, enlarging, and finishing internal diameters with tight tolerances.
**Key Features:**
- **High-Precision Design:** Manufactured from premium alloy steel for maximum rigidity and minimal vibration during operation
- **Advanced Insert Compatibility:** Supports industry-standard indexable carbide inserts (CCMT, DCMT, VBMT) for versatile machining applications
- **Optimized Geometry:** Features specialized flute designs and cutting edge preparations for improved chip control and surface finish
- **Coolant Through Capability:** Available with internal coolant channels for efficient heat dissipation and chip evacuation in deep-hole operations
- **Multiple Size Options:** Range of diameters (6-50mm) and lengths to accommodate various workpiece requirements
- **Enhanced Stability:** Anti-vibration design with precision-ground surfaces for reduced chatter and improved machining accuracy
**Performance Advantages:**
✓ Delivers superior surface finishes (Ra 0.8-1.6μm)
✓ Maintains dimensional accuracy within ±0.01mm
✓ Extends tool life through optimized cutting geometries
✓ Reduces machining time with efficient chip removal
✓ Suitable for both roughing and finishing operations
**Typical Applications:**
- Precision boring of engine cylinders and hydraulic components
- Internal machining of pipes and tubular workpieces
- Enlarging and finishing pre-drilled holes
- Complex internal contouring operations
- High-volume production environments
Available in various configurations including solid carbide, indexable, and adjustable models to suit specific machining requirements. Backed by rigorous quality control to ensure consistent performance in demanding manufacturing environments.

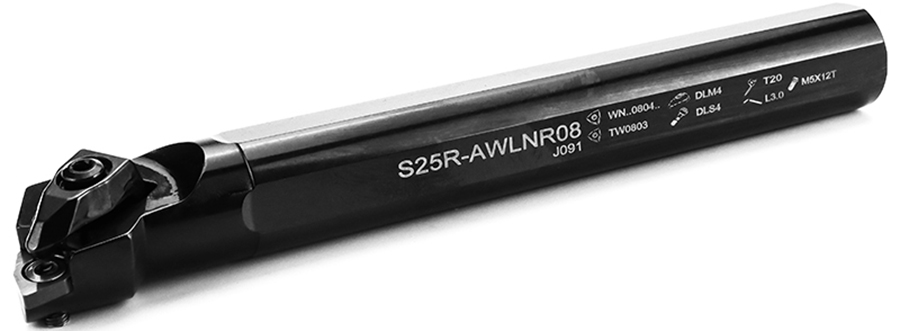

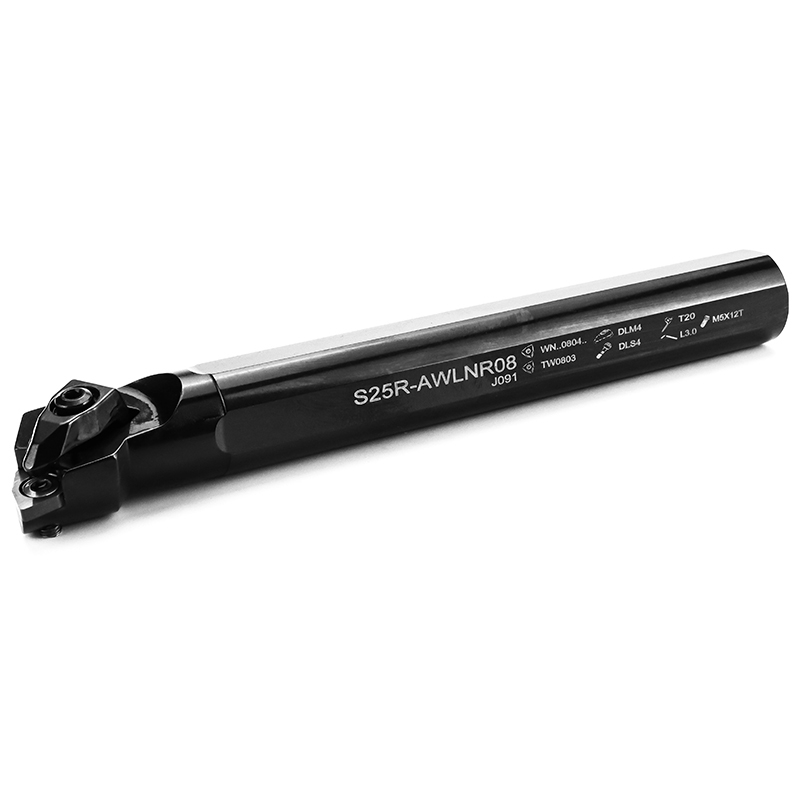

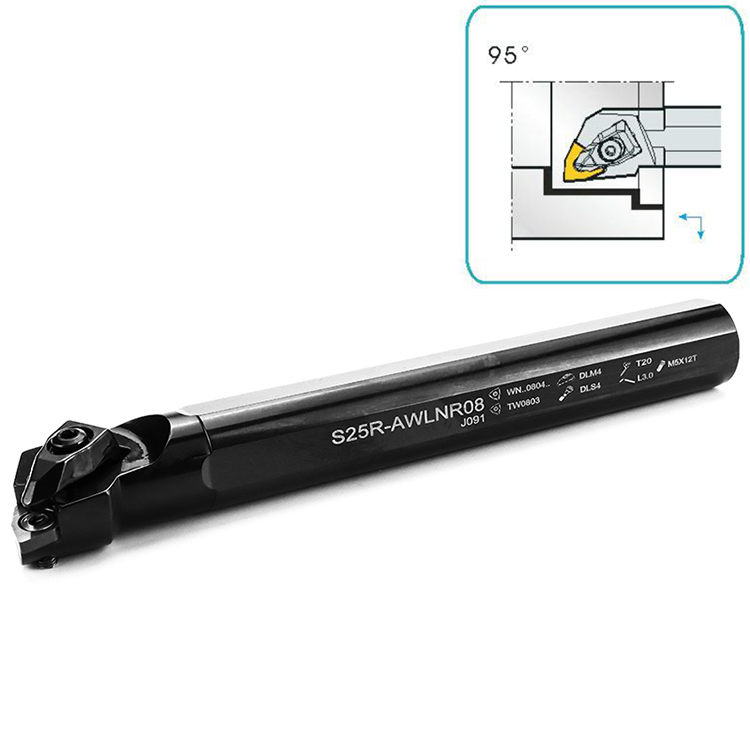

Boring bar S25R-AWLNR08

AWLNR/L
Designation size / Размер Inserts Clamp Clamp Screw Shim Screw Spring Wrench
Тип dmin h l l1 f min α° Пластины Зажим Зажимной
винт
Прокладка винт Пружина Ключ
S20Q-AWLNR/L06 26 18 180 35 13 25 15° WN**0604** DLM3 DLS3 X X DSP3 L2.5
S25R-AWLNR/L06 32 23 200 40 17 30 13° MW0603 A-M4
S32S-AWLNR/L06 40 30 250 45 22 38 13°
S20Q-AWLNR/L08 28 18 180 40 13 28 15° WN**0804** DLM4 DLS4 X X DSP4 L3.0,T20
S25S-AWLNR/L08 32 23 200 45 17 34 13° TW0803 M5-12T
S32S-AWLNR/L08 40 30 250 45 22 44 13°

Boring bargrooving tool holderCutting tool holder 01Turning insertThreading insertsgrooving insert TDCgrooving insert TGFSolid carbide Micro boring toolCarbide thread end mill 2Sandhog workshopSandhog tools

Company Information :

Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar ,Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert ,Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.

Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!

Warmly Welcome you to have a visit of our factory .

Turning Tool Holder Shipping:

Port Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen
Shipping By Air ,By Sea or By Express
Shipping Time 4-10days By Express Different Area many take different shipping days
7-15days By Air
25-55days By Sea
Trade Terms FOB, CIF, EXW, CFR, DDU...


FAQ:
Q: Are you a factory or a trading company?

A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their spare parts.

Q: Can we use our own logo or design?

A: Yes, we provide OEM and ODM

Q: What is your MOQ?

A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.

Q: How can I get some samples?

A: We are willing to provide you samples for testing after receiving the sample fee.

Q: Do you accept custom orders?

A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
