S25R-MVQNR16
Sandhog

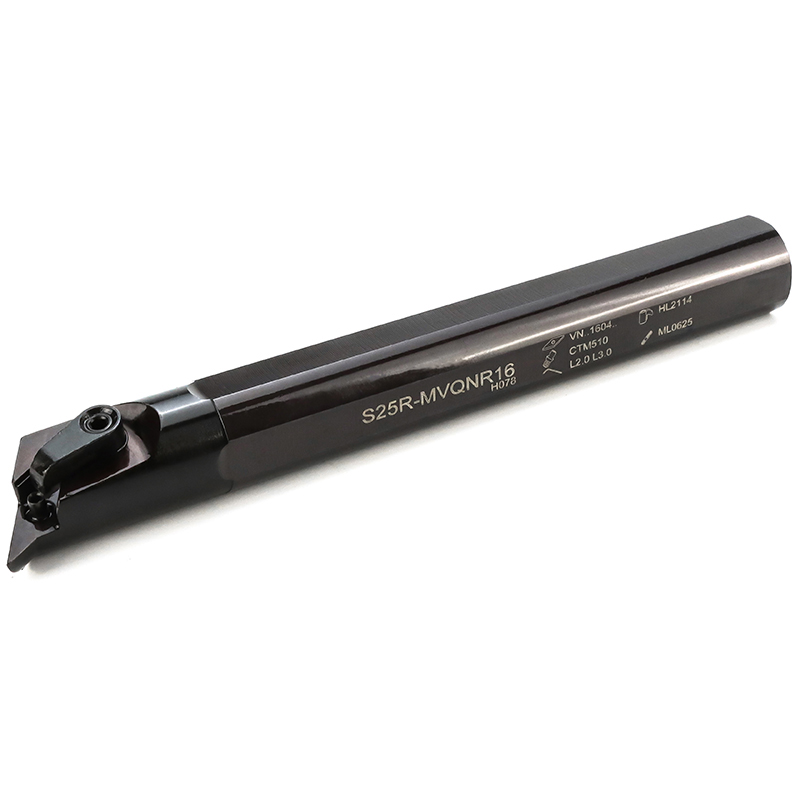

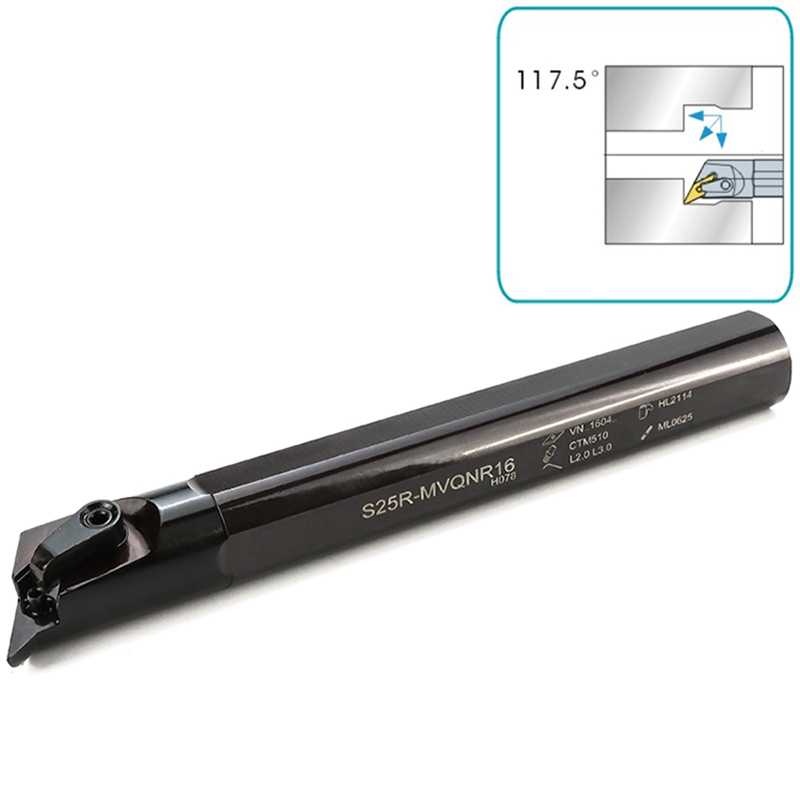

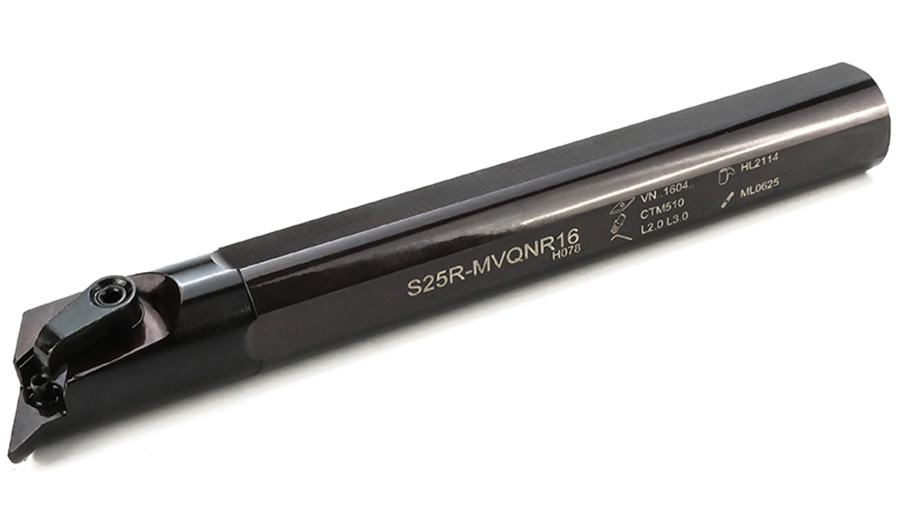

The Sandhog Coromant S25R-MVQNR16 is a high-precision, anti-vibration boring bar engineered for superior performance in demanding internal turning operations. Part of the industry-leading Silent Tools™ family, it is specifically designed to eliminate chatter and vibration, enabling deeper cuts, higher metal removal rates, and exceptional surface finishes where standard solid bars fail. This is the definitive tool for maximizing productivity and part quality in deep-boring applications.
Core Features & Benefits
Silent Tools™ Damping Technology: An integrated, tuned passive damping system absorbs and neutralizes vibration at its source. This transforms unstable, noisy operations into smooth, chatter-free machining.
Engineered for Depth: Optimized for reliable performance at 5x the shank diameter (LxD5) boring depths. Achieve precise, straight bores in deep cavities with confidence.
Unmatched Surface Finish: The elimination of chatter allows you to achieve fine surface finishes (Ra < 1.6 µm) consistently, reducing or eliminating secondary finishing operations.
Boost Productivity & Tool Life: Run at higher, more productive cutting parameters without compromising stability. Experience predictable, even tool wear for lower cost per part and extended insert life.
Robust & Reliable Construction: Built to Sandvik's premium standards with a heavy-duty 25x25 mm shank and precision-ground surfaces for maximum rigidity and repeatability in the toughest conditions.
Stop compromising on speed, depth, or finish. The Sandhog Coromant S25R-MVQNR16 boring bar provides the engineered solution to vibration—the single biggest limitation in deep-hole boring. It protects your machine spindle, ensures part accuracy, and unlocks the full productive capacity of your turning center. Invest in stability. Invest in precision. Invest in productivity.

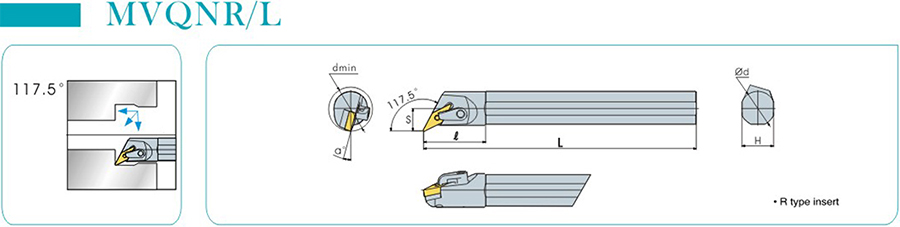

| MVQNR/L | |||||||||||||
| Designation | size / Размер | Inserts | Shim | Pin | Clamp | Screw | Wrench | ||||||
| Тип | dmin | φd | s | L | ℓ | H | α° | Пластины | Прокладка | Штырь | Зажим | винт | Ключ |
| S25R-MVQNR/L16 | 34 | 25 | 17 | 200 | 50 | 23 | 12° | VN**1604** | X | CTM510 | HL2114 | ML0625 | L2.0,L3.0 |
| S32S-MVQNR/L16 | 46 | 32 | 23 | 250 | 50 | 30 | 17° | MV1603 | CTM513 | HL2414 | |||
| S40T-MVQNR/L16 | 54 | 40 | 27 | 300 | 55 | 38 | 15° | ||||||
| S50U-MVQNR/L16 | 64 | 50 | 32 | 350 | 60 | 48 | 12° | ||||||
