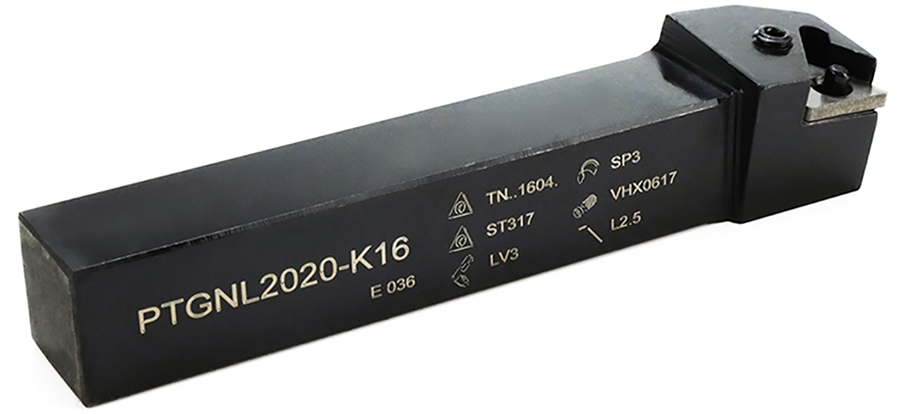

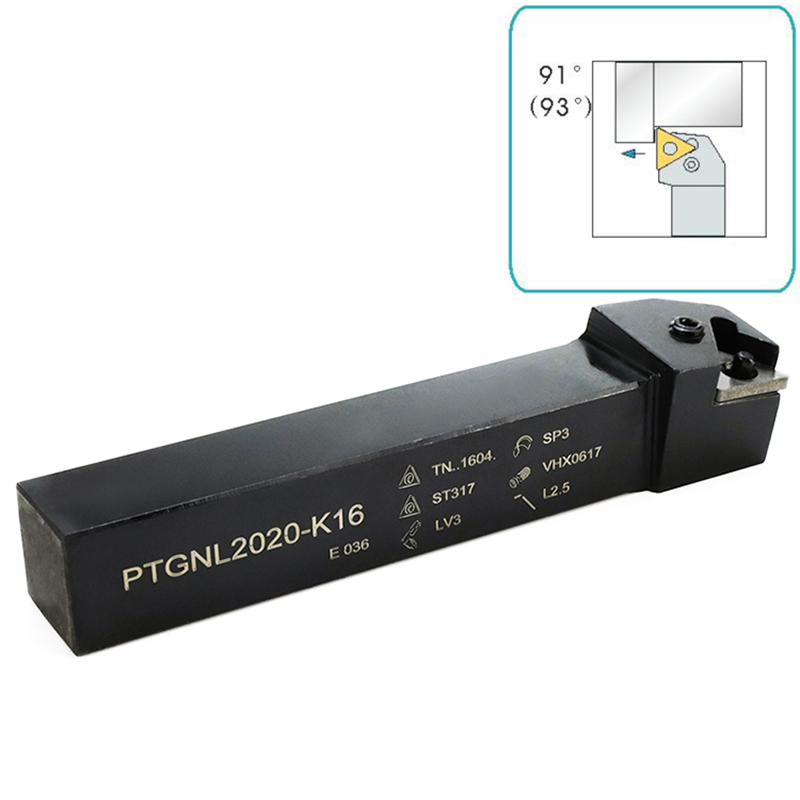

PTGNL2020K16
SANDHOG
Rapid Tool Change System: The integrated quick-change mechanism allows for tool changes in seconds. Simply loosen the locking clamp, swap the tool post, and re-tighten. This dramatically reduces non-cutting time, increases machine utilization, and is ideal for high-mix or high-volume production.
Superb Repeatability (< 0.0002" / 5µm): The precise locking wedge and ground seating surfaces ensure exceptional repeatability every time a tool is changed. This eliminates the need for frequent tool re-probing or offset adjustments, guaranteeing consistent part dimensions and reducing setup errors.
Optimized for CNMG/CNGG Inserts: The PTGNL2020K16 is designed for 80° diamond-shaped, negative rake inserts (e.g., CNMG-432, CNGG-432). This versatile insert geometry is perfect for a wide range of turning operations, including general turning, facing, and light profiling.
KNUX Style Clamp Mechanism: Features a reliable and easy-to-use top clamp (K-type) for secure insert retention. The clamp design ensures consistent seating force and simplifies insert indexing.
Coolant Compatibility: Designed to handle standard coolant applications, helping to efficiently evacuate chips and control heat at the cutting edge.

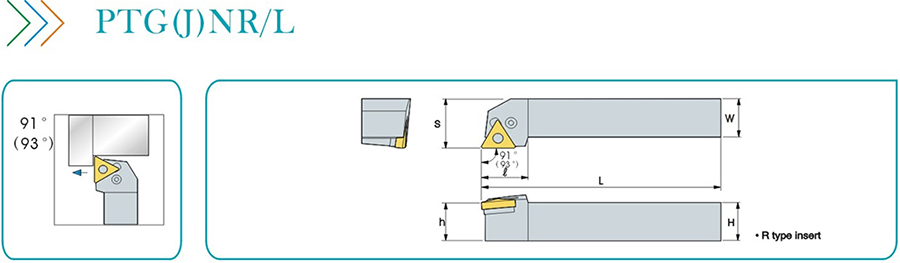

| ▷PTG(J)NR/L | ||||||||||||
| Designation | size / Размер | |||||||||||
| H | W | L | ℓ | h | s | Inserts | Shim | Lever | Screw | ShimPin | Wrench | |
| Тип | Пластины | Прокладка | Палец | винт | Прокладка | Ключ | ||||||
| PTG(J)NR/L1616H16 | 16 | 16 | 100 | 26 | 16 | 20 | TN**1604** | ST317 | LV3 | VHX0617 | SP3 | L2.5 |
| PTG(J)NR/L2020K16 | 20 | 20 | 125 | 26 | 20 | 25 | ||||||
| PTG(J)NR/L2525M16 | 25 | 25 | 150 | 26 | 25 | 32 | ||||||
| PTG(J)NR/L2525M22 | 25 | 25 | 150 | 28 | 25 | 32 | TN**2204** | ST42 | LV4 | VHX0821 | SP4 | L3.0 |
| PTG(J)NR/L3232P22 | 32 | 32 | 170 | 30 | 32 | 40 | ||||||
