MTENN2020K16
SANDHOG

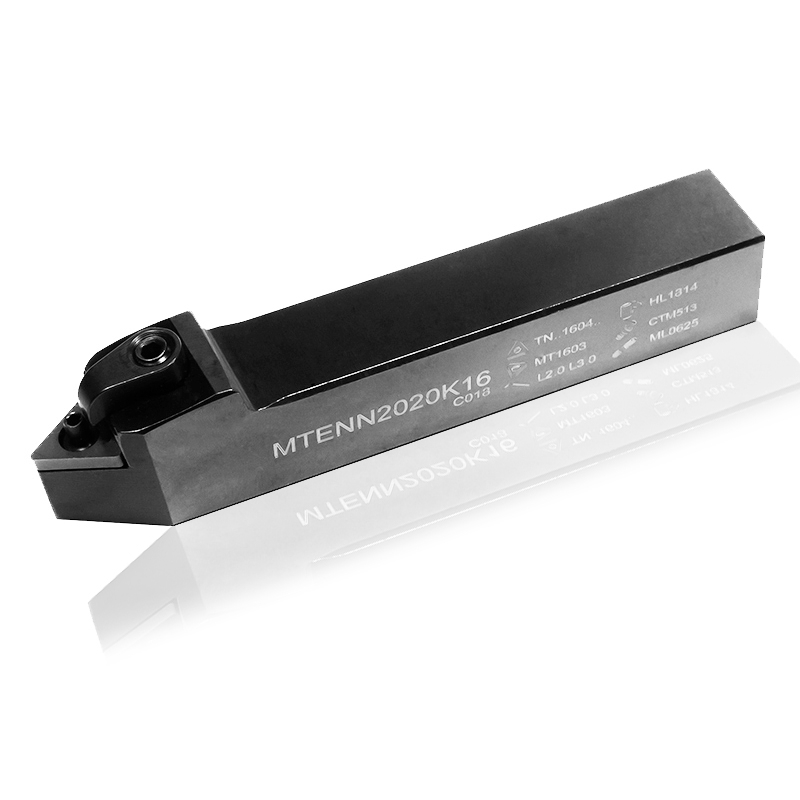

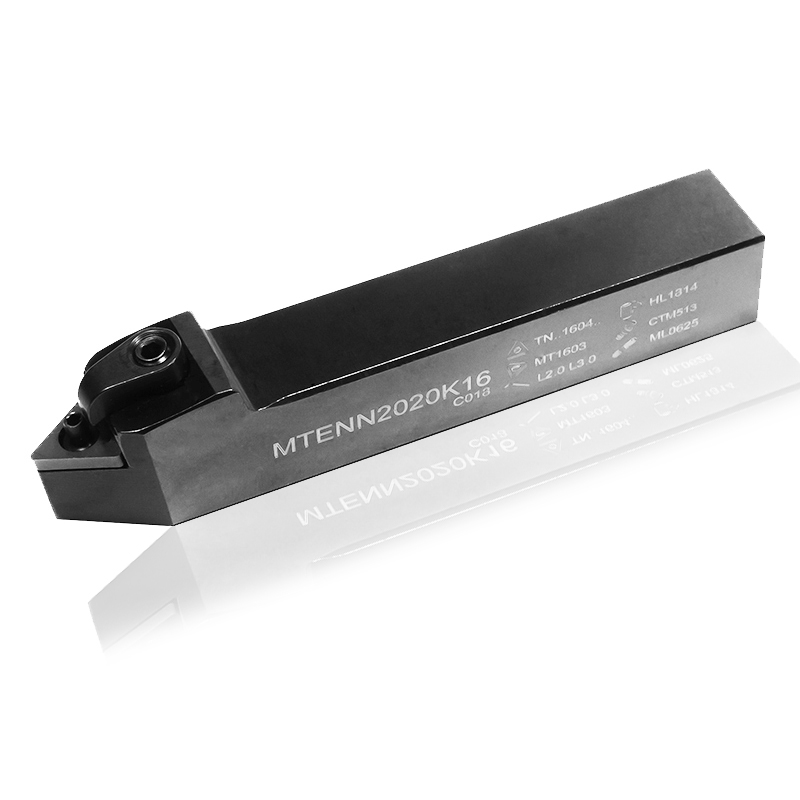

The Sandhog MTENN2020K16 is a precision CNC lathe thread tool cutting tool holder designed for small diameter machining applications. This high-performance tool holder is engineered to accommodate tungsten carbide threading inserts, providing exceptional stability and accuracy for metal turning operations.
Enhanced Surface Finish: The rigid construction minimizes tool deflection, resulting in superior surface quality on machined parts
Extended Tool Life: Proper insert clamping and heat-treated construction reduce vibration and thermal stress
High Accuracy: Precision ground surfaces ensure repeatable positioning accuracy for critical threading operations
Wide Material Compatibility: Suitable for machining various metals including steel, stainless steel, aluminum, and alloys
Application Range
Ideal for small diameter turning operations in the 10-20mm range, this tool holder is particularly effective for precision threading, grooving, and profiling applications on CNC lathes and turning centers.
Quality Assurance
Manufactured by Ningbo SANHAN Alloy Material Co., Ltd., a professional manufacturer with years of experience in producing turning tool holders, boring bars, and threading tool holders. The company utilizes advanced processing equipment including DMG Five-Axis Linkage High-Precision Machining Centers to ensure product quality meets international standards.
Shipping & Support
Available for worldwide shipping with multiple shipping options including air, sea, and express delivery. The manufacturer supports OEM and ODM services, with minimum order quantities starting from 1 piece for standard products and 20 pieces for non-standard custom designs.

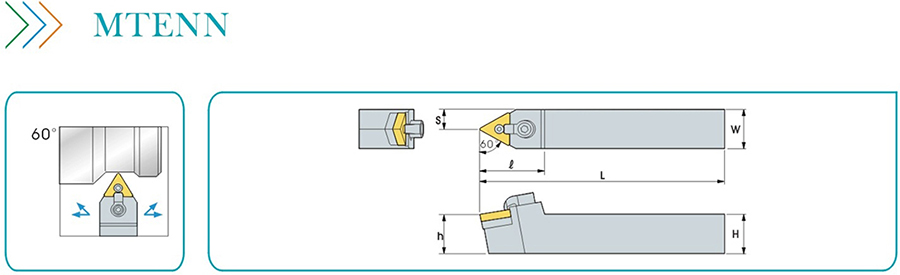

| ▷MTENN | ||||||||||||
| Designation | size / Размер | Inserts | Shim | Pin | Clamp | Screw | Wrench | |||||
| H | W | L | ℓ | h | s | |||||||
| Тип | Пластины | Прокладка | Штырь | Зажим | винт | Ключ | ||||||
| MTENN1616H16 | 16 | 16 | 100 | 34 | 16 | 8 | TN**1604** | MT1603 | CTM513 | HL1814 | ML0625 | L2.0, L3.0 |
| MTENN2020K16 | 20 | 20 | 125 | 34 | 20 | 10 | ||||||

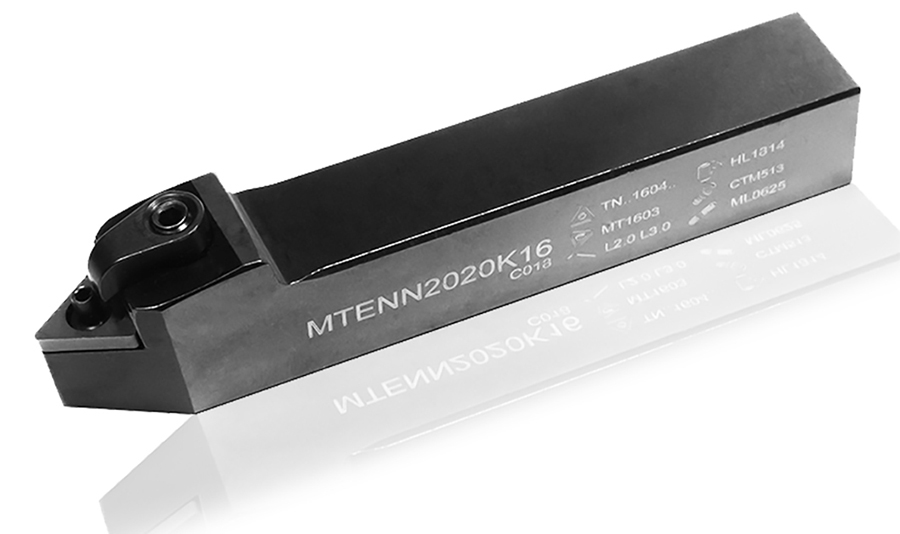

| MTENN2525M16 | 25 | 25 | 150 | 34 | 25 | 13 | ||||||
| MTENN3232P16 | 32 | 32 | 170 | 34 | 32 | 16 | ||||||
| MTENN2525M22 | 25 | 25 | 150 | 38 | 25 | 13 | TN**2204** | MT2204 | CTM617 | HL1917 | ML0830 | L2.5, L4.0 |
| MTENN3232P22 | 32 | 32 | 170 | 40 | 32 | 16 | ||||||
Company Information :
Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar ,Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert ,Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.
Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!
Warmly Welcome you to have a visit of our factory .
Turning Tool Holder Shipping:
| Port | Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen | |
| Shipping | By Air ,By Sea or By Express | |
| Shipping Time | 4-10days By Express | Different Area many take different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their
spare parts.
Q: Can we use our own logo or design?
A: Yes, we provide OEM and ODM
Q: What is your MOQ?
A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.
Q: How can I get some samples?
A: We are willing to provide you samples for testing after receiving the sample fee.
Q: Do you accept custom orders?
A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
