| Quantity: | |
|---|---|
SSDCN2525M09
SANDHOG

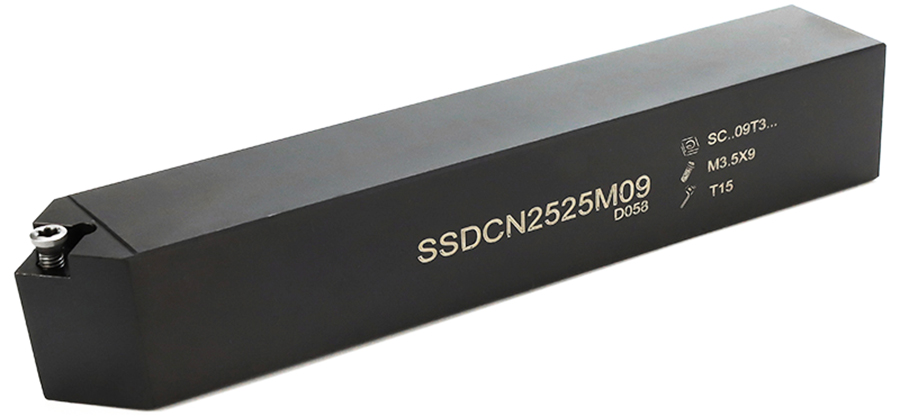

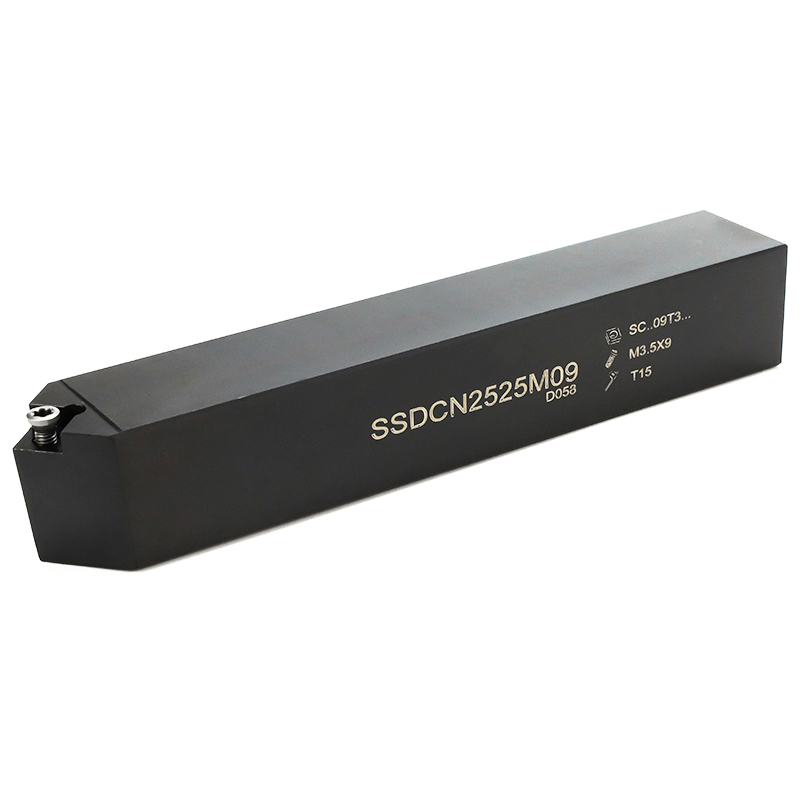

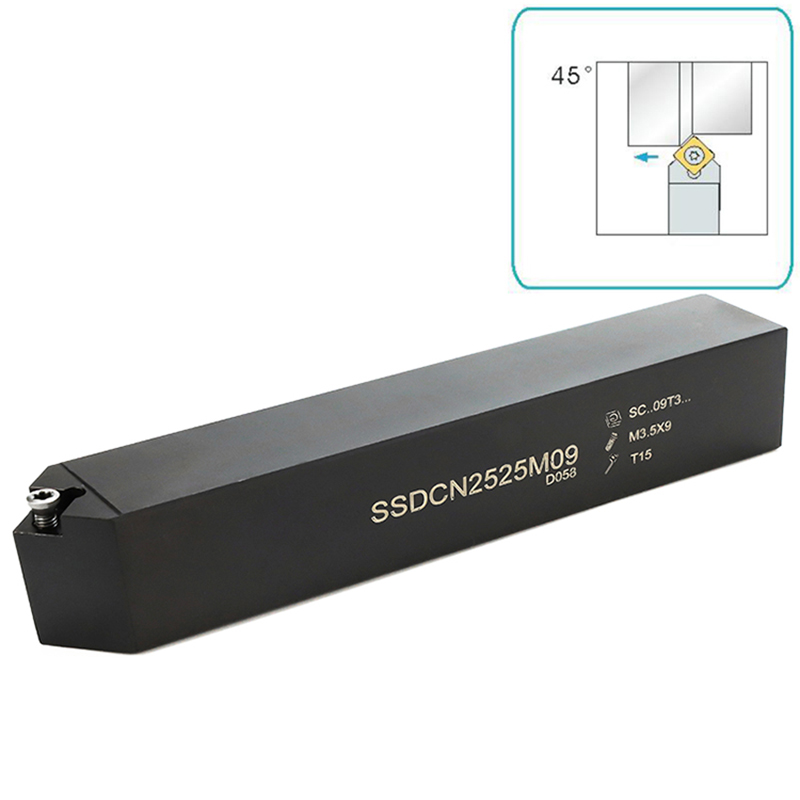

The Sandhog SSDCN2525M09 is a precision-engineered turning tool holder designed to deliver exceptional stability and superior surface finishes. Part of Sandhog's professional-grade tungsten carbide tool accessory line, this "S-type" (shank style) holder is built for demanding machining applications where rigidity, accuracy, and reliable performance are paramount.
Dedicated to Finishing & Profiling: Specifically designed for finishing operations, light roughing, and complex profiling. Its geometry provides excellent access to the workpiece and is ideal for achieving tight tolerances and fine surface finishes.
Positive Rake Cutting Action: The SSDCN design utilizes a positive rake cutting geometry. This reduces cutting forces, minimizes power consumption, and produces thinner, more manageable chips—ideal for machining softer materials, alloys, and for applications where workpiece deflection is a concern.
Superior Rigidity with Larger Shank: The 25mm x 25mm square shank provides a significant increase in mass and rigidity compared to smaller holders. This dramatically reduces vibration and chatter, enabling higher feed rates and more aggressive cuts while maintaining precision.
Pin-Lock Clamping Mechanism (Designated by 'D'): Features a reliable and simple clamping system where a pin secures the insert. This design allows for quick and easy insert changes while providing secure seating for consistent performance.
Optimized for Modern Inserts: Designed to work with common, high-performance positive rake inserts featuring advanced chipbreakers, promoting excellent chip control and evacuation in finishing applications.
Robust Construction: Manufactured from high-grade alloy steel and precision-ground, ensuring long-term durability, consistent accuracy, and resistance to deflection under load.

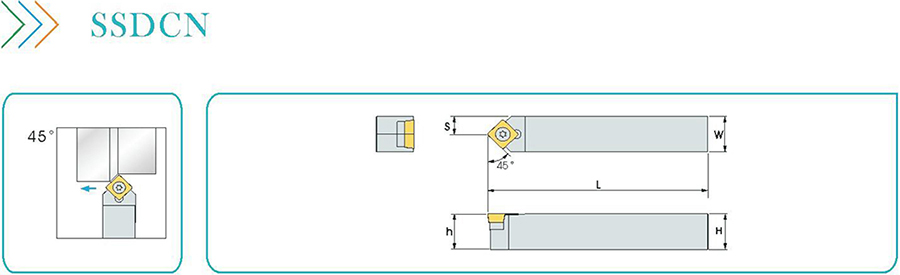

| ▷SSDCN | |||||||||
| Designation | size / Размер | Inserts | Screw | Wrench | |||||
| H | W | L | ℓ | h | s | ||||
| Тип | Пластины | винт | Ключ | ||||||
| SSDCN1212F09 | 12 | 12 | 80 | 16 | 12 | 6 | SC**09T3** | M3.5X9 | T15 |
| SSDCN1616H09 | 16 | 16 | 100 | 16 | 16 | 8 | |||
| SSDCN2020K09 | 20 | 20 | 125 | 16 | 20 | 10 | |||
| SSDCN2525M09 | 25 | 25 | 150 | 16 | 25 | 13 | |||
Company Information :
Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar ,Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert , Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.
Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!
Warmly Welcome you to have a visit of our factory .
Turning Tool Holder Shipping:
| Port | Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen | |
| Shipping | By Air ,By Sea or By Express | |
| Shipping Time | 4-10days By Express | Different Area many take different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading
holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their
spare parts.
Q: Can we use our own logo or design?
A: Yes, we provide OEM and ODM
Q: What is your MOQ?
A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.
Q: How can I get some samples?
A: We are willing to provide you samples for testing after receiving the sample fee.
Q: Do you accept custom orders?
A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
