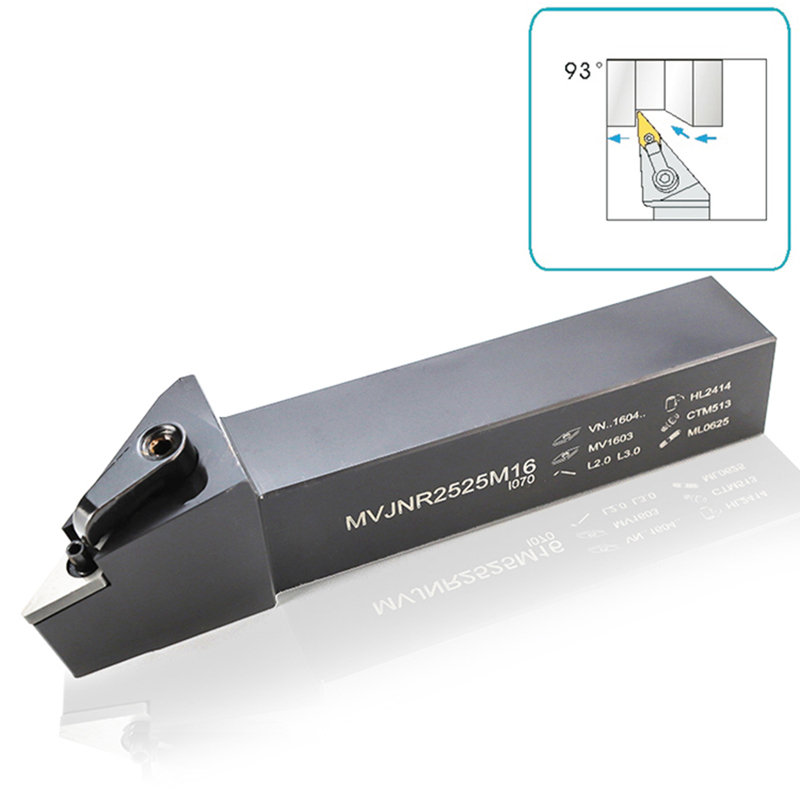

MVJNR2525M16
SANDHOG
Design Features and Performance Advantages
High Rigidity and Stability
The robust 25×25 mm shank design ensures minimal vibration during high-speed machining operations. The tool holder's construction provides excellent rigidity, resulting in superior surface finishes and extended tool life. The processing after quenching treatment ensures higher precision and better coordination between the holder and insert.
Superior Material Quality
Manufactured from high-quality 42CrMo material sourced from TOP5 steel enterprises, the tool holder offers exceptional wear resistance and long-term performance in harsh machining environments. The material grade provides strong vibration resistance, making it suitable for heavy-duty applications.
Versatile Application Capability
The tool holder supports a wide range of VN1604 series cutting inserts, offering flexibility for machining various materials including steel, aluminum, cast iron, and hardened alloys. The 75-degree lead angle makes it ideal for external cylindrical turning, face turning, and contouring operations.
Ease of Use and Quick Change
The indexable insert system allows for quick and easy installation, reducing setup time and enhancing productivity. The standardized design ensures compatibility with standard tooling systems and quick change capabilities in production environments.
The Sandhog MVJNR2525M16 CNC turning tool holder represents a reliable and efficient solution for CNC lathe operations. With its high rigidity, superior material quality, and versatile application capabilities, this tool holder is designed to deliver exceptional performance in demanding machining environments. The combination of precision engineering, quality manufacturing, and comprehensive support makes it an ideal choice for automotive, aerospace, and general machining applications where precision, durability, and efficiency are paramount.

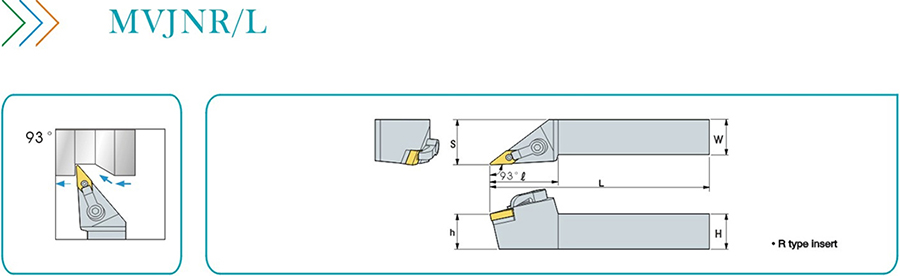

| ▷MVJNR/L | ||||||||||||
| Designation | size / Размер | Inserts | Shim | Pin | Clamp | Screw | Wrench | |||||
| H | W | L | ℓ | h | s | |||||||
| Тип | Пластины | Прокладка | Штырь | Зажим | винт | Ключ | ||||||
| MVJNR/L1616K16 | 16 | 16 | 125 | 44 | 16 | 20 | VN**1604** | MV1603 | CTM513 | HL2414 | ML0625 | L2.0, L3.0 |
| MVJNR/L2020K16 | 20 | 20 | 125 | 44 | 20 | 25 | ||||||
| MVJNR/L2525M16 | 25 | 25 | 150 | 44 | 25 | 32 | ||||||
| MVJNR/L3232P16 | 32 | 32 | 170 | 46 | 32 | 40 | ||||||
Company Information :
Ningbo SANHAN Alloy Material Co., Ltd. with years of experience in manufacture Turning Tool Holder ,Boring Bar ,Threading Tool holder , Grooving Tool Holder , Milling Tool Holder , Milling Cutter ,Drilling Tools , Threading Insert ,Grooving Insert , Turning insert , Milling insert as well as their spare parts etc.
Located in Ningbo-China, a port city with developed industries. We have strong design team and passed the ISO9001 Certification. Also, we have various kinds of processing equipment, including DMG Five- Axis Linkage High-Precision Machining Center. All can meet your requirements!
Warmly Welcome you to have a visit of our factory .
Turning Tool Holder Shipping:
| Port | Ningbo/Shanghai/Guangzhou/Hangzhou/Shenzhen/Xiamen | |
| Shipping | By Air ,By Sea or By Express | |
| Shipping Time | 4-10days By Express | Different Area many take different shipping days |
| 7-15days By Air | ||
| 25-55days By Sea | ||
| Trade Terms | FOB, CIF, EXW, CFR, DDU... | |
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory specializing in the production of external indexable turning tool holders,boring bars, threading holders and grooving holders for CNC lathes and indexable milling cutters for CNC machine center as well as their
spare parts.
Q: Can we use our own logo or design?
A: Yes, we provide OEM and ODM
Q: What is your MOQ?
A: We have stock in stock for regular products, and we support a minimum order of one, and a minimum order of 20 non-standard products.
Q: How can I get some samples?
A: We are willing to provide you samples for testing after receiving the sample fee.
Q: Do you accept custom orders?
A: Of course, we are a professional manufacturer, and custom orders are what we are good at.
