Sandhog Turning tool for external cutting Turning tool holder

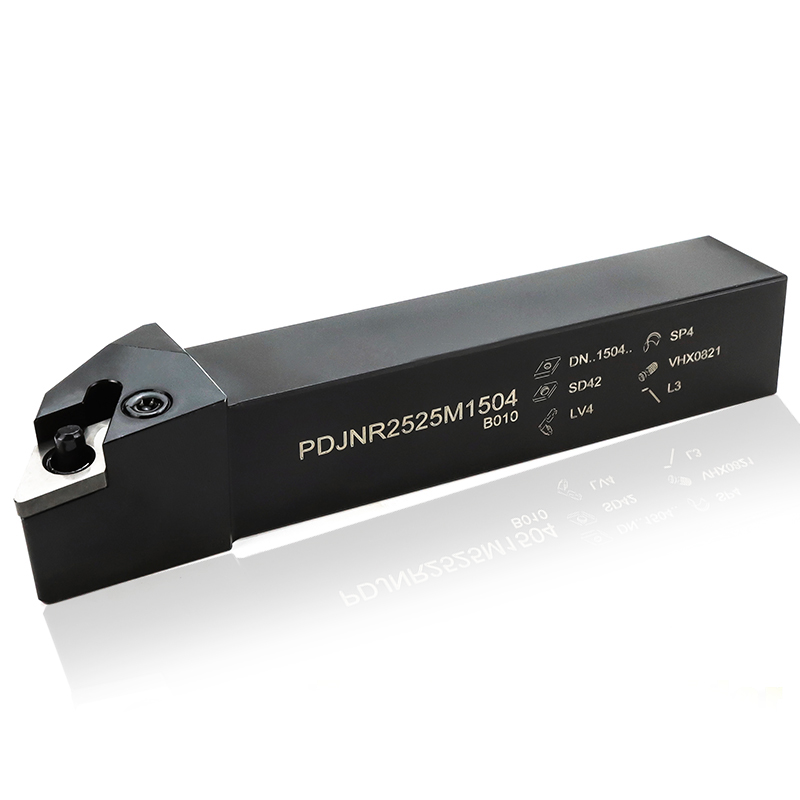

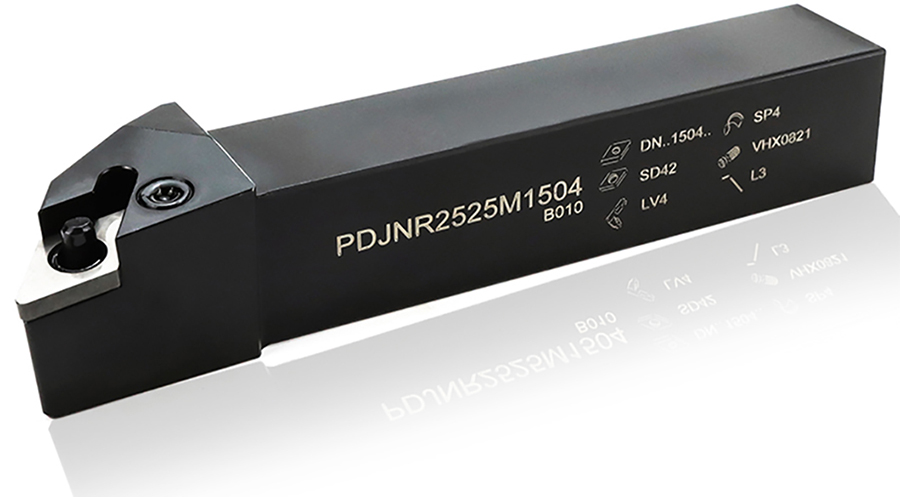

The Sandhog PDJNR2525M1504 is a premium, high-rigidity quick-change tool holder designed for demanding external machining operations. Featuring a 95° lead angle and an extra-strong 25x25mm shank, it is specifically built to handle heavy cuts, deep profiling, and precise shoulder work with exceptional stability and minimal deflection. This holder excels in applications requiring superior metal removal rates and excellent surface finish on complex part geometries.

95° Leading Angle for Superior Access & Strength: The PDJNR (also known as a "Dovetail" style) geometry provides a 95° approach angle, offering exceptional strength at the cutting point. This design excels in profiling, facing to a shoulder, and deep grooving, providing excellent surface finish and dimensional accuracy on the workpiece shoulder.

Heavy-Duty 25mm Square Shank: The oversized 25x25mm shank provides maximum rigidity and vibration damping, making it ideal for aggressive cutting parameters, interrupted cuts, and machining tough materials. This significantly reduces chatter and allows for higher feed rates and depths of cut.

Quick-Change Compatibility for Minimal Downtime: Designed for use with Sandhog and industry-standard quick-change tool post systems. Enables tool changes in seconds, drastically reducing setup and changeover time in production environments or complex multi-tool jobs.

Negative Rake, High-Strength Inserts: Utilizes durable, multi-edged 80° rhombic/diamond-shaped, negative rake inserts (e.g., DNMG-150408). The negative rake geometry provides a stronger cutting edge, ideal for heavy roughing and stable finishing on steels and cast irons.

Precision Screw-Down Clamp (M-Type): Features a secure and precise screw-down clamp mechanism for positive insert retention. This design ensures excellent insert seating and repeatability, crucial for maintaining consistent cutting performance and tight tolerances.

Optimized for Chip Control: The geometry and clamp design work with modern insert chipbreakers to ensure effective chip formation and evacuation, preventing chip jamming in deep grooves or during profiling.

The Sandhog PDJNR2525M1504 combines heavy-duty construction with precision geometry to tackle your most challenging turning operations. Achieve higher productivity through aggressive machining, maintain exceptional accuracy on complex profiles, and leverage the speed of quick-change tooling for unbeatable efficiency.

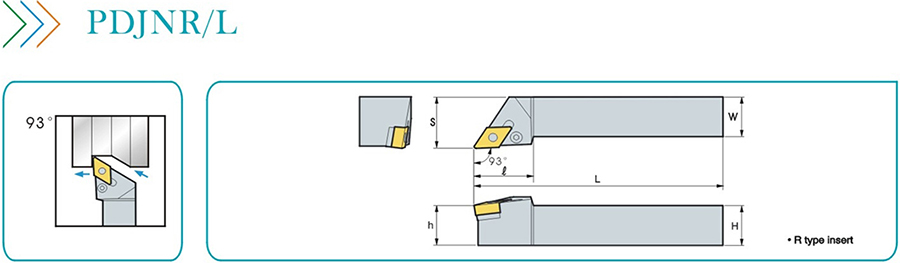

▷PDJNR/L
Designation	size / Размер						Inserts	Shim	Lever	Screw	ShimPin	Wrench
	H	W	L	ℓ	h	s
Тип							Пластины	Прокладка	Палец	винт	Прокладка	Ключ
PDJNR/L1616H11	16	16	100	26	16	20	DN**1104**	SD317	LV3	VHX0617	SP3	L2.5
PDJNR/L2020K11	20	20	125	26	20	25
PDJNR/L2525M11	25	25	150	26	25	32
PDJNR/L2020K1504	20	20	125	36	20	25	DN**1504**	SD42	LV4	VHX0821	SP4	L3.0
PDJNR/L2525M1504	25	25	150	36	25	32
PDJNR/L3232P1504	32	32	170	36	32	40
PDJNR/L2020K1506	20	20	125	36	20	25	DN**1506**	SD42	LV4B	VHX0821	SP4	L3.0
PDJNR/L2525M1506	25	25	150	36	25	32
PDJNR/L3232P1506	32	32	170	36	32	40
