Select Carbide Inserts for Metalworking

Carbide inserts are small cutting tools used in metalworking, known for their ability to maintain hardness at high temperatures, resist wear, and deliver high-precision cutting. They are commonly mounted on tool holders for operations like turning, milling, and drilling. These inserts are composed of tungsten carbide — a hard, wear-resistant material — often coated with layers such as titanium nitride (TiN), titanium carbonitride (TiCN), or aluminum oxide to improve their performance.

In metalworking, precision and efficiency are vital. Carbide inserts play a crucial role in achieving these goals by offering consistent cutting performance over long periods. They reduce the need for frequent tool changes, decrease downtime, and improve overall productivity in machining environments. Their repeatable performance also contributes to tighter tolerances and better surface finishes, especially in high-speed and high-feed conditions.

Unlike high-speed steel (HSS) tools, carbide inserts can withstand extreme machining environments. They maintain their cutting edge under stress and temperature fluctuations, which makes them ideal for automated production lines where durability and consistency are non-negotiable.

Factors to Consider When Choosing Carbide Inserts

Choosing the right carbide insert for a specific metalworking task requires understanding a range of variables. Poor insert selection can result in rapid wear, chipping, or even complete failure of the cutting tool. Here are key aspects to examine:

Workpiece Material

Different materials require different insert grades and geometries. For example:

• Steel: Requires tougher grades with high heat resistance.

• Stainless Steel: Demands sharper cutting edges and coatings to prevent built-up edge.

• Cast Iron: Needs hard and wear-resistant grades.

• Non-ferrous Metals: Require sharp, uncoated or lightly coated inserts to reduce smearing.

Material-specific carbide grades are formulated to withstand unique cutting forces, thermal conditions, and chip evacuation patterns. Choosing an insert that matches the workpiece material directly impacts tool life and surface quality.

Type of Operation

Each machining operation — turning, milling, grooving, threading — imposes different stress levels on the insert. For instance:

• Turning: Requires strong edge security and thermal resistance.

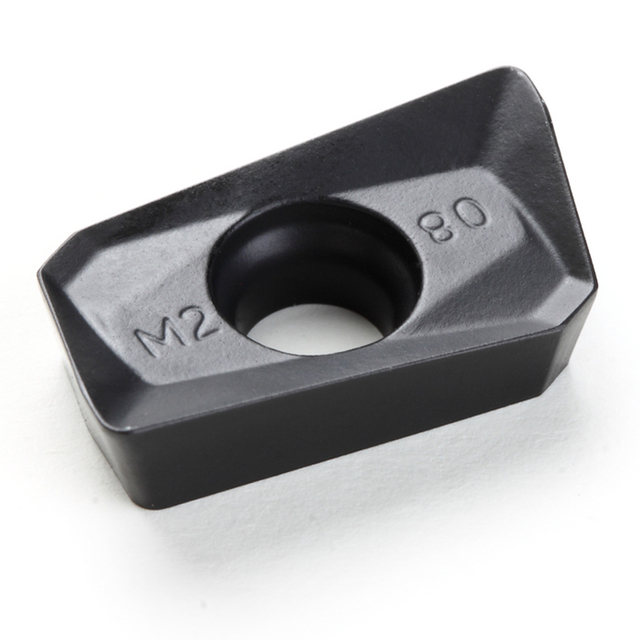

• Milling: Needs impact resistance due to intermittent cuts.

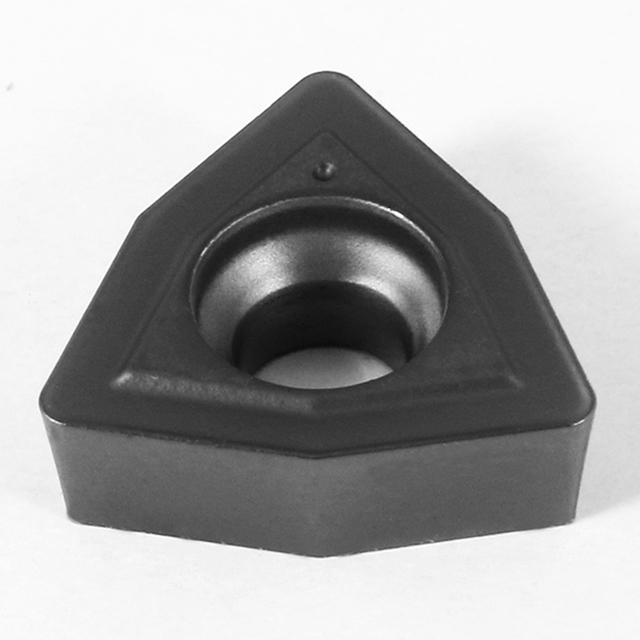

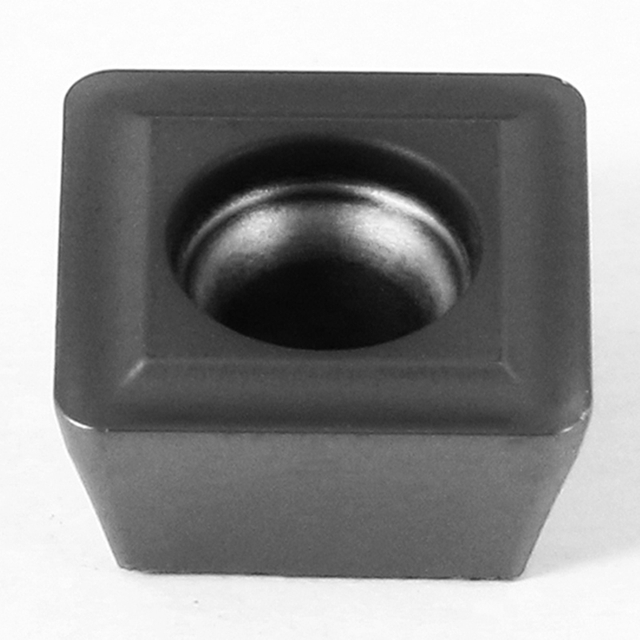

• Drilling: Benefits from specific chipbreakers and self-centering tips.

• Threading: Demands extremely precise geometries.

Matching insert geometry and chipbreaker design with the operation type enhances chip control and minimizes the risk of insert breakage.

Insert Shape and Size: Making the Right Choice

Insert shape influences cutting performance, strength, and accessibility. Here are commonly used shapes:

Larger inserts offer more cutting edges and durability, ideal for heavy-duty work. Smaller inserts are better for precision work and tight spaces. Additionally, consider the insert’s inscribed circle (IC) size, thickness, and corner radius — all of which influence cutting strength and stability.

Coating Types and Their Role in Performance

Carbide inserts are often coated to extend tool life and enhance cutting efficiency. Each coating serves a specific function:

• TiN (Titanium Nitride): General-purpose coating; improves wear resistance.

• TiCN (Titanium Carbonitride): Tougher than TiN; good for high-speed operations.

• Al₂O₃ (Aluminum Oxide): Offers excellent heat resistance for dry cutting.

• Multi-layer Coatings: Combine benefits; used for advanced materials and complex operations.

Choosing the appropriate coating not only improves tool longevity but also reduces cutting temperatures and friction, which is especially useful in high-speed machining environments.

Insert Grade Classification and ISO Standards

Insert grades refer to the combination of carbide material and coating that defines hardness, toughness, and wear resistance. ISO classifications help standardize selection based on material groups:

Matching the grade with your workpiece material and operation type ensures maximum tool performance and durability.

Common FAQs About Carbide Inserts

How long do carbide inserts last?

Carbide insert longevity depends on the material being machined, cutting speed, feed rate, coolant usage, and operation type. On average, inserts last between 10 to 30 minutes in continuous operation, though high-end applications may achieve longer times with optimized parameters.

Can carbide inserts be resharpened?

Typically, indexable carbide inserts are not resharpened. Instead, they are replaced once all usable edges are worn out. However, solid carbide tools may be resharpened in some cases, though this is rarely cost-effective for standard inserts.

What causes carbide insert failure?

Insert failure can result from several issues:

• Incorrect insert grade or coating.

• Excessive cutting speed or feed rate.

• Poor chip evacuation.

• Inappropriate coolant application.

• Vibration or machine tool instability.

Proper selection and adherence to recommended parameters can significantly reduce the risk of premature failure.

Conclusion

Selecting the right carbide insert is not just a technical decision — it’s a strategic one. It influences tool cost, production efficiency, surface quality, and even operator safety. Always start by identifying the material and the nature of the operation. Then, consider the insert shape, size, grade, and coating. Refer to ISO classifications as a guide and ensure your insert is compatible with your tooling system.

Carbide inserts are more than just cutting tools — they are the foundation of precision and productivity in modern machining. Make informed choices, and you’ll gain not only longer tool life but also better workpiece outcomes and reduced operational costs.
