In the world of precision machining, the boring bar is an essential tool for enlarging or finishing holes that have already been drilled or cast. Unlike drilling, which creates a hole from scratch, boring is all about refining existing internal diameters to achieve the desired dimensions, geometry, and surface finish. The boring bar itself is a specialized cutting tool mounted on a machine like a lathe or milling center, enabling machinists to achieve high-accuracy bores in various materials, from aluminum to hardened steel.
Boring bars come in a variety of sizes, shapes, and configurations, each designed for specific applications. Whether you're dealing with shallow holes or deep, narrow bores, there's a boring bar setup optimized for that task. The core principle behind the boring process is material removal through a single-point cutting tool. This approach allows for fine control over the bore's diameter and internal surface quality, often achieving tolerances within a few microns.
What makes boring bars uniquely powerful is their versatility. From aerospace and automotive to mold-making and general fabrication, boring is a go-to method when standard drilling or reaming just won’t cut it—literally. But to fully appreciate the role of boring bars, we need to understand how they work, the types available, and how to select the right one for your application.
At its core, the boring process uses a single-point cutting tool to remove material from the interior of a hole. The boring bar is the tool holder that supports this cutting insert and ensures it remains stable throughout the machining process. Stability is paramount. Even slight deflections can lead to tapered holes, poor surface finishes, or catastrophic tool failure.
Typically, a boring bar is mounted on a CNC lathe, boring head, or turning center. As the spindle rotates the workpiece, the boring bar gradually moves along the inner diameter, shaving off layers of material. This movement is precise, usually managed by the machine’s digital control system. The length and diameter of the boring bar determine its rigidity—longer bars require enhanced damping techniques to combat vibration and chatter.
Advanced boring bars often come equipped with vibration-dampening technologies like tuned mass dampers or internal dampers. These allow for deeper boring operations without sacrificing accuracy. Machinists must also consider cutting parameters such as feed rate, spindle speed, and depth of cut to optimize performance.
| Parameter | Description |
|---|---|
| Cutting Speed (SFM) | Depends on material and insert grade |
| Feed Rate (IPR) | Affects surface finish and tool life |
| Depth of Cut (DOC) | Influences chip load and heat generation |
| Tool Overhang | Must be minimized to prevent vibration |
The proper use of boring bars involves more than just tool setup. It’s about tuning every aspect of the operation to ensure consistent quality, especially when working with tight tolerances or hard-to-machine materials.
Choosing the right type of boring bar depends on the application, machine setup, and material. Broadly, boring bars can be categorized into several types:

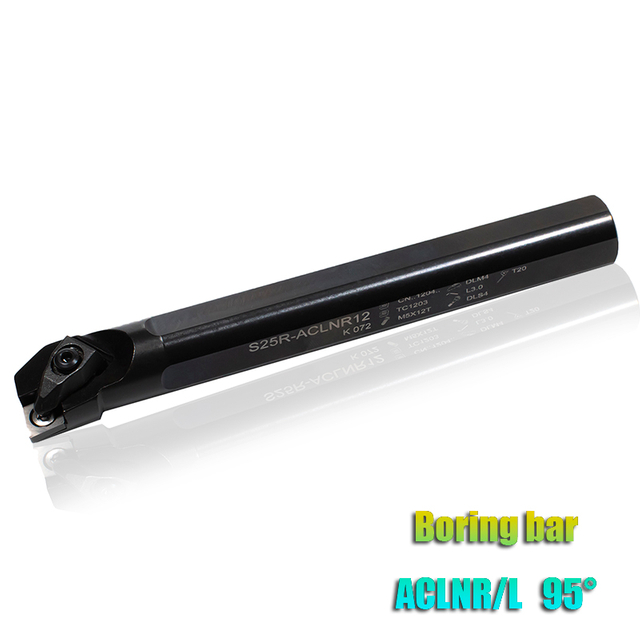

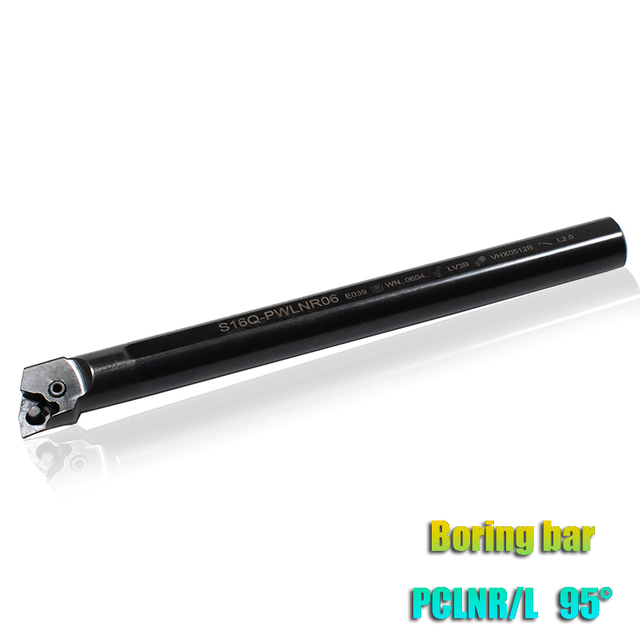

Solid boring bars are made from a single piece of material, such as high-speed steel (HSS) or tungsten carbide. These bars offer high rigidity and are ideal for short-reach applications where stability is critical. Solid carbide bars, in particular, are known for their stiffness and vibration resistance, making them a go-to for fine-finishing tasks.
Modular boring bars feature interchangeable components, including heads, shanks, and inserts. This design allows machinists to adapt to various boring scenarios without investing in multiple single-use tools. While they may sacrifice some rigidity compared to solid bars, their flexibility and cost-efficiency make them popular in custom and low-volume machining setups.
These are specially engineered with internal damping systems to suppress chatter and vibration. They’re particularly useful for deep-hole boring, where long overhangs would normally compromise accuracy. Though more expensive, their performance often justifies the investment in high-precision industries.
Each type has its strengths and trade-offs, and selecting the right one hinges on understanding the project’s specific requirements, including hole depth, tolerance, material hardness, and finish quality.
Boring bars find applications across a wide spectrum of industries. Here are some typical scenarios:
In automotive manufacturing, boring bars are used to precisely finish engine cylinder bores. These bores require ultra-fine surface finishes and strict dimensional tolerances to ensure proper engine performance and longevity.
Aircraft components, especially engine casings and structural parts, often have internal features that need boring. Aerospace applications usually demand the tightest tolerances and best surface finishes, making boring bars indispensable.
Boring bars are widely used in mold-making industries to refine the internal cavities of molds used in plastic injection, die casting, and rubber molding. Precision here directly affects the quality of the molded parts.
Boring isn’t limited to heavy industries—any project requiring an accurate internal diameter may involve a boring bar at some point. The versatility of this tool makes it one of the most frequently used components in any machine shop.
Choosing the right boring bar isn't just about picking a tool off the shelf. It’s a multi-faceted decision involving machine capability, material properties, hole dimensions, and desired outcomes.
Here are some of the most important factors to consider:
Material of the Workpiece: Harder materials like stainless steel may require carbide bars and advanced inserts.
Depth of the Bore: Deep bores require longer bars with vibration control features.
Required Tolerance: The tighter the tolerance, the more stable and rigid your boring bar needs to be.
Surface Finish Goals: For fine finishes, use sharper inserts and lower feed rates.
Machine Compatibility: Ensure the boring bar shank fits your tool holder or turret properly.
Balancing these elements ensures efficiency, reduces tool wear, and achieves consistent, high-quality results.
Drilling is used to create an initial hole, while boring enlarges and finishes that hole to precise specifications. Boring offers better dimensional control and surface finish compared to drilling.
Chatter can be minimized by reducing tool overhang, using vibration-dampened boring bars, adjusting feed rates, and ensuring the setup is rigid and properly aligned.
Yes, boring bars can be used in milling centers equipped with boring heads. The principle remains the same, although the machine axis and toolpaths differ from lathe setups.
The lifespan of a boring bar depends on usage, material, and operating conditions. Inserts typically wear out first and should be replaced regularly. The bar itself lasts longer but must be checked for wear, cracks, or deflection.
The boring bar is more than just a machining tool—it’s a gateway to precision engineering. From fine-tuning engine cylinders to shaping aerospace components, boring bars help achieve tolerances and finishes that few other tools can. Understanding how boring bars work, their types, applications, and selection criteria is essential for anyone in the machining industry.
As industries continue to demand higher accuracy and efficiency, the role of the boring bar remains irreplaceable. Whether you're a seasoned machinist or a newcomer to CNC operations, mastering the basics of boring is a crucial step in producing high-quality, reliable components.
