What Are the Three Types of Boring Bars?

When precision meets complexity in metalworking, the tool of choice is often the boring bar. These unsung heroes of internal machining play a pivotal role in enlarging and finishing pre-existing holes with tight tolerances and optimal surface finishes. But not all boring bars are created equal. Understanding the three primary types of boring bars is crucial for engineers, machinists, and toolroom specialists aiming to optimize efficiency and accuracy.

In this comprehensive guide, we explore the core types of boring bars, how they differ, and where each excels. Whether you're new to the world of boring or a seasoned professional, this article will deliver in-depth insights into this essential tooling component.

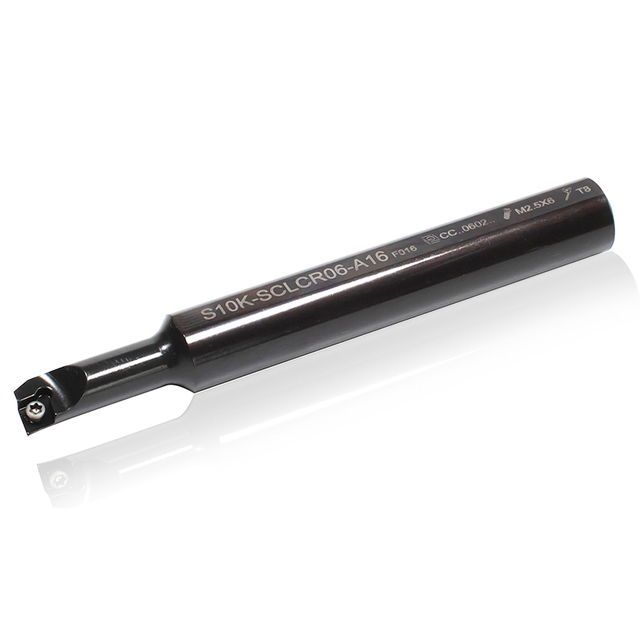

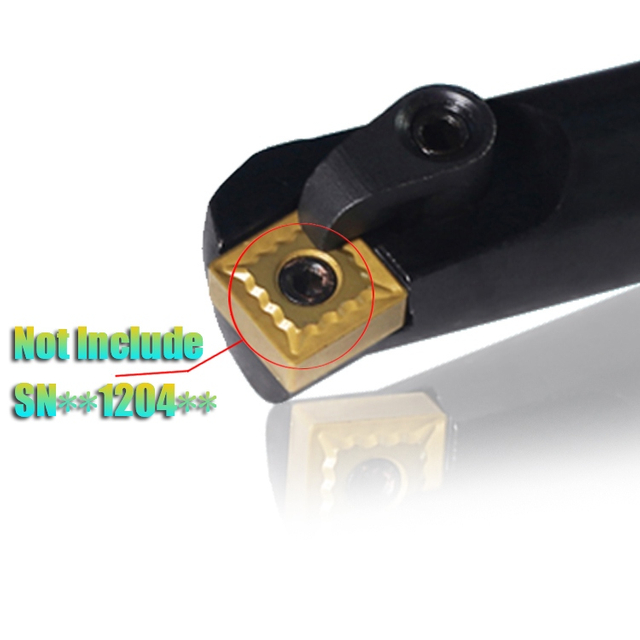

What Is a Boring Bar?

A boring bar is a specialized cutting tool used to enlarge or finish the interior diameter of a hole that has already been drilled or cast. Unlike drilling, which creates new holes, boring is about refining them. The boring bar accomplishes this through a single-point cutting tool, mounted either on a lathe or a machining center.

Boring bars come in various materials and geometries, but they all serve one purpose: achieving internal hole precision that meets specific dimensional tolerances, surface finish requirements, and geometric consistency.

The Three Main Types of Boring Bars

So, what are the three types of boring bars commonly used in machining environments? Each type is designed for different applications and has unique structural features:

1. Solid Boring Bars

Solid boring bars are made from a single piece of material, typically steel, carbide, or high-speed steel (HSS). These bars are extremely rigid and are ideal for short-reach applications, where vibration and chatter are minimal.

Key Features:

• Made from one homogeneous material

• Excellent rigidity and stability

• Best suited for shallow boring operations

• Lower cost compared to modular types

Advantages:

• Low deflection due to solid construction

• Easier to set up and maintain

• Longer tool life when used within limits

Limitations:

• Length-to-diameter (L/D) ratio is usually limited to 3:1 or less

• Not ideal for deep holes or complex geometries

Applications:

• Precision boring on manual lathes

• CNC machines with minimal overhang

• High-speed finishing of cast holes

2. Modular Boring Bars

Modular boring bars are composed of interchangeable components such as heads, extensions, and shanks. This design allows users to customize the tool to meet specific requirements.

Key Features:

• Modular system with detachable heads and extensions

• Available in different materials (e.g., steel shank with carbide tip)

• Flexible length adjustments and cutting geometries

Advantages:

• Highly versatile and cost-effective for varied operations

• Reduces the need for multiple fixed tools

• Ideal for high-mix, low-volume production

Limitations:

• Slightly reduced rigidity compared to solid bars

• Requires precise alignment to avoid tool runout

Applications:

• CNC machining centers with frequent tool changes

• Deep-hole boring with extension adapters

• Prototyping or jobs requiring custom tool paths

3. Damped Boring Bars

Damped boring bars, also known as vibration-reducing or anti-vibration boring bars, are engineered with internal damping systems to minimize chatter during deep boring operations. They are often filled with viscous fluid or tuned mass dampers.

Key Features:

• Internally damped with absorbers or fluids

• Designed for high length-to-diameter ratios (up to 10:1 or more)

• Typically constructed from carbide or heavy-metal alloys

Advantages:

• Exceptional performance in deep-hole machining

• Improved surface finish and dimensional accuracy

• Reduces tool wear and spindle load

Limitations:

• Higher initial cost

• Limited modularity or adjustability

Applications:

• Aerospace or medical components with long bores

• Precision tooling on CNC lathes and mill-turn machines

• High-speed boring in hardened materials

Comparison Table: Solid vs. Modular vs. Damped Boring Bars

How to Choose the Right Boring Bar?

Choosing the appropriate boring bar for your application requires consideration of several factors:

1. Depth of Cut and L/D Ratio

If your hole depth is shallow, a solid boring bar may suffice. For medium-depth holes with changing geometries, modular bars offer better flexibility. For long, narrow bores, damped bars are essential to reduce vibration and chatter.

2. Machine Compatibility

Different boring bars are designed for manual lathes, CNC mills, or turning centers. Ensure that the boring bar fits your toolholder system and is capable of handling the required cutting forces.

3. Surface Finish Requirements

For ultra-smooth finishes or tight tolerances, damped boring bars outperform others, especially at higher spindle speeds and feed rates.

FAQs About Boring Bars

Q1. What is the standard material used for boring bars?

A: Common materials include carbide, steel, and heavy metal alloys. Carbide offers superior rigidity and heat resistance, while steel is economical and easier to machine.

Q2. What does L/D ratio mean in boring bars?

A: L/D stands for Length-to-Diameter Ratio, which affects the tool’s rigidity and tendency to vibrate. A higher L/D ratio typically increases the risk of chatter.

Q3. Can I use boring bars for roughing operations?

A: Yes, but solid or modular bars are preferred for roughing due to their toughness. Damped bars are usually reserved for finishing due to their higher cost.

Conclusion

From the solid rigidity of single-piece tools to the adaptive power of modular systems and the chatter-crushing finesse of damped bars, the world of boring bars is richer and more specialized than it seems at first glance. Whether you're chasing microns or drilling deep into aerospace alloys, choosing the right boring bar type can make or break your project’s success.
