Views: 216 Author: Site Editor Publish Time: 2025-05-18 Origin: Site
Boring bars are not just simple tools—they are the cornerstone of internal machining processes. Their role in transforming rough, pre-drilled holes into precise, dimensionally accurate cylindrical cavities makes them invaluable in industries ranging from aerospace to heavy machinery. But what exactly does a boring bar do, and why is it such a vital tool in the machinist’s arsenal?
In this comprehensive guide, we explore the boring bar’s functions, its applications, structure, and the reasons it stands out among other cutting tools. Whether you're a seasoned engineer or a manufacturing enthusiast, understanding the boring bar can elevate your insight into precision machining.

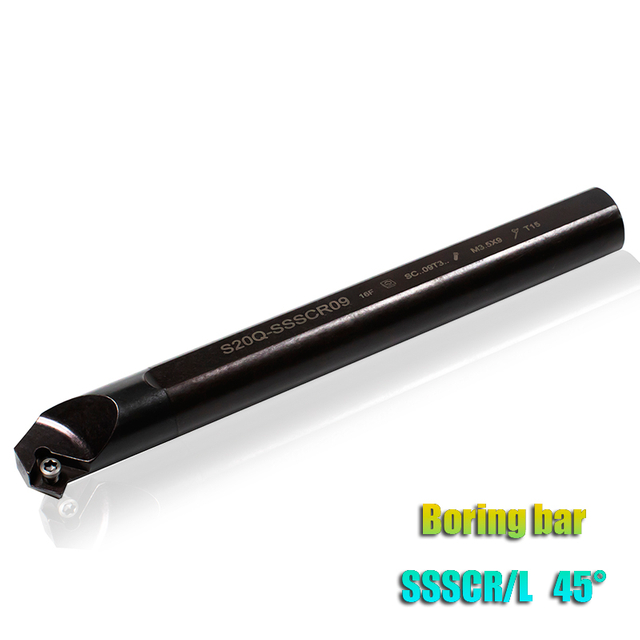

At its core, a boring bar is designed to enlarge and finish existing holes in a workpiece. Unlike drilling, which creates a hole from scratch, boring is a secondary operation. The boring bar refines the internal diameter, improves concentricity, and ensures a smoother surface finish. This transformation turns a crude drilled hole into a precision-engineered cavity.
Boring bars are especially critical when tight tolerances and surface accuracy are non-negotiable. For instance, in engine block manufacturing, the cylinder bores must meet extremely high standards. A drill alone can't meet those standards—but a boring bar can.
A boring bar works by rotating within an existing hole while a single-point cutting tool at its tip shaves away material. The process involves careful control over:
Cutting depth
Feed rate
Spindle speed
Tool rigidity
The cutting edge is positioned off-center to the tool’s axis, allowing it to remove material from the hole’s inner walls as it turns. Depending on the setup, boring can be done manually on lathes or via CNC machines for higher accuracy and repeatability.
The bar itself may be constructed from hardened steel, tungsten carbide, or other alloys designed to withstand the mechanical stresses of metal cutting. The longer the boring bar, the more tool deflection becomes a concern—thus, stiffness and damping properties become critical design considerations.
| Type of Boring Bar | Primary Use Case | Material Compatibility |
|---|---|---|
| Solid Boring Bars | Standard roughing and semi-finishing tasks | Steel, aluminum, cast iron |
| Carbide Boring Bars | High rigidity, minimal deflection | Hard metals, alloys |

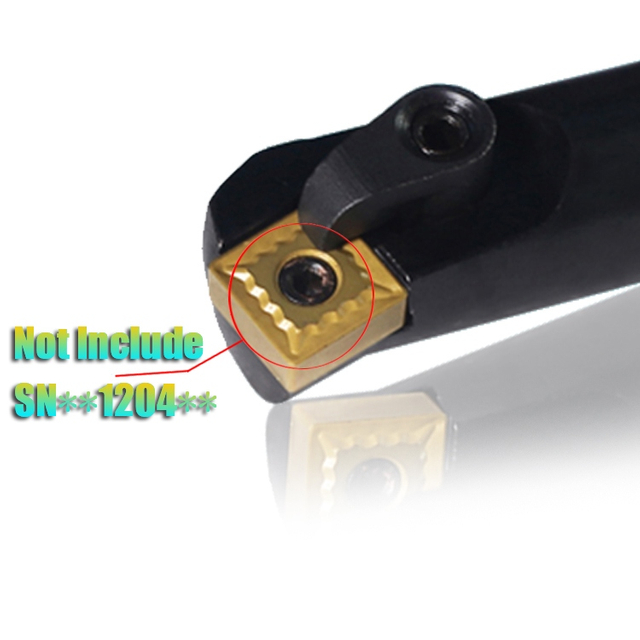

| Indexable Boring Bars | Replaceable cutting tips for flexibility | General-purpose applications |
| Micro Boring Bars | Ultra-precise small bore work | Aerospace, medical components |
| Twin Boring Bars | Simultaneous cutting for large diameter holes | Heavy-duty industrial work |
Each type is selected based on the diameter of the bore, depth of cut, and material being machined. Choosing the right boring bar is crucial to maintain dimensional accuracy and prolong tool life.
Why use a boring bar instead of a drill or reamer? The answer lies in its ability to customize hole dimensions with extreme precision. Key benefits include:
High Tolerance Achievement: Perfect for industries requiring sub-millimeter accuracy.
Superior Surface Finish: Ideal for sealing surfaces or bearing housings.
Versatility: Useful across metals, plastics, and composites.
Reduced Tooling Time: Especially with CNC boring bars that offer programmable depth and feed.
Boring bars often reduce the need for secondary processes like honing or grinding. In many production lines, they serve as a cost-saving bridge between roughing and finishing operations.
Despite their utility, boring bars come with their set of challenges. Understanding and mitigating these issues can save both time and money.
Tool Deflection: Long or thin bars may bend during operation, leading to tapered holes.
Chatter and Vibration: These reduce surface quality and damage both the tool and workpiece.
Overheating: Inadequate cooling or feed rates may cause thermal distortion.
Material Build-Up: Especially common when machining soft materials like aluminum.
Solutions involve choosing shorter bars, using carbide or damped bars, and optimizing cutting parameters. Some advanced boring bars even come equipped with internal coolant systems to enhance heat management.
Q1: Can a boring bar create a hole from scratch?
A1: No. A boring bar is used to enlarge and finish an existing hole, not initiate one.
Q2: What’s the difference between a boring bar and a reamer?
A2: A boring bar offers greater flexibility in size and depth adjustments, while a reamer provides a fixed diameter and is primarily for finishing.
Q3: How long can a boring bar be?
A3: The bar’s length depends on the bore depth, but longer bars must be stiffer to avoid deflection. Ratios like 3:1 (length to diameter) are common.
Q4: Do boring bars work only on lathes?
A4: No. While commonly used on lathes, they are also employed in boring mills, CNC machining centers, and boring heads.
Q5: How do I select the right boring bar?
A5: Consider factors like material hardness, bore diameter, depth, and machine type. Carbide bars are best for rigidity, while indexable bars offer convenience.
The boring bar is far more than a mere cutting tool—it's the precision artist of internal machining. From aerospace components to hydraulic cylinders, wherever perfect bores are demanded, the boring bar answers the call. Understanding its mechanics, variations, and operational nuances can lead to better decisions in manufacturing setups and ultimately better-quality parts.
