What Is A Face Milling Cutter?

Introduction

Face milling cutters are essential tools in the world of metalworking and CNC machining. These specialized cutters are used to create flat surfaces on a workpiece by rotating at high speeds and removing material from the top surface. Unlike other milling tools that may cut along the sides, face milling cutters operate perpendicular to the surface, ensuring high-quality, smooth finishes. Their design allows for quick material removal, improved efficiency, and precision, making them indispensable in manufacturing and fabrication industries.

In essence, the face milling cutter combines science and engineering to deliver consistently accurate results. It works by rotating multiple cutting teeth over a large area of the material surface, making it ideal for projects that demand a high level of accuracy and flatness. Whether you're machining steel, aluminum, or cast iron, this tool ensures your workpiece meets exact specifications.

What Is a Face Milling Cutter and How Does It Work?

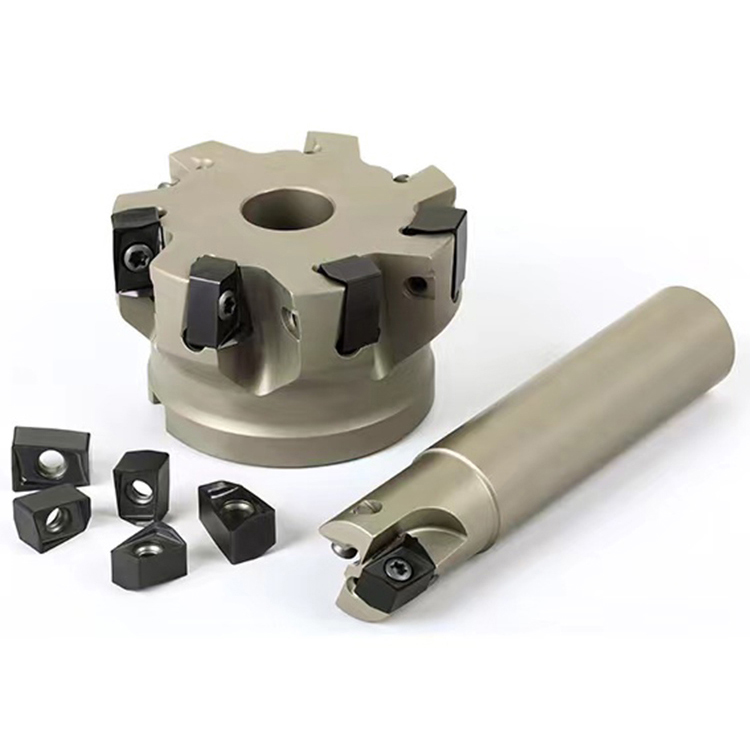

A face milling cutter is a type of rotating tool mounted on a milling machine spindle, designed specifically for cutting flat surfaces perpendicular to the tool’s axis. It typically consists of a central body that holds multiple replaceable cutting inserts, allowing for high-speed rotation and consistent material removal.

The cutting inserts are arranged on the periphery and face of the tool, allowing them to simultaneously remove material as the tool spins. This operation reduces machining time significantly compared to other techniques. The cutter can be adjusted based on feed rate, cutting speed, and depth of cut, giving machinists a high degree of control over the machining process.

When a face milling cutter contacts a workpiece, it removes material layer by layer with minimal vibration, resulting in smoother finishes. The tool’s design allows for easy maintenance; worn inserts can be replaced without discarding the entire cutter. This makes it a cost-effective solution for continuous industrial use.

Types of Face Milling Cutters and Their Applications

Face milling cutters come in various types, each engineered for specific machining requirements. Here are the most common types:

Single-Sided Face Milling Cutters

These cutters are designed with cutting inserts only on one side. They are typically used for finishing operations where surface quality is critical. Due to their structure, they provide excellent surface finishes but may have lower material removal rates.

Double-Sided Face Milling Cutters

Equipped with inserts on both sides, these cutters are suitable for roughing operations where large amounts of material must be removed. They offer better efficiency and are ideal for heavy-duty milling tasks.

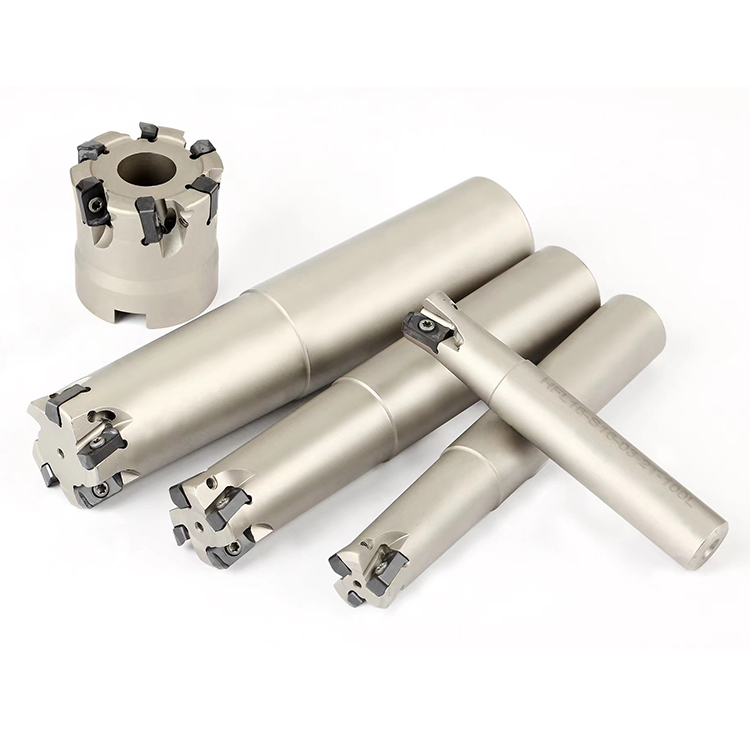

Shell End Mills

Shell mills are another variation of face milling cutters. They are mounted onto an arbor and are known for their versatility in both roughing and finishing operations. They are often used in large-scale manufacturing processes where precision and durability are key.

Each type of cutter is selected based on the material of the workpiece, desired surface finish, and production volume. Choosing the right cutter can significantly improve productivity and reduce tool wear.

Key Components and Materials of Face Milling Cutters

The effectiveness of a face milling cutter depends heavily on its construction. Here are the main components and materials used in its design:

The insert material plays a crucial role in determining the cutter’s durability and cutting performance. Carbide inserts are the most widely used due to their hardness and heat resistance. Meanwhile, coatings like Titanium Nitride (TiN) or Aluminum Chromium Nitride (AlCrN) further improve tool longevity and reduce friction during cutting.

Benefits and Advantages of Using Face Milling Cutters

Face milling cutters offer a range of advantages that make them preferred tools in machining environments:

High Surface Quality

Face milling cutters deliver excellent surface finishes, reducing or eliminating the need for secondary finishing operations. This not only saves time but also enhances the aesthetic quality of the final product.

Cost Efficiency

Because the inserts are replaceable, users do not need to discard the entire tool when the cutting edge wears out. This significantly reduces long-term tooling costs.

Versatility

These cutters can be used on various materials, including ferrous and non-ferrous metals. They are compatible with different milling machines and are adjustable to various cutting depths and feed rates.

Productivity Enhancement

Due to their wide cutting diameter and multiple inserts, face milling cutters remove more material per pass compared to end mills or slot cutters. This increases throughput in mass production settings.

Common FAQs About Face Milling Cutters

What is the difference between face milling and end milling?

Face milling cuts with the cutter's face and removes material from the surface of a workpiece. End milling uses the cutter’s end and edges, and it's more suited for profile cutting, slots, and pockets.

How do I choose the right face milling cutter?

Consider factors like material type, desired surface finish, machine spindle speed, and feed rate. Also, evaluate the cutter’s diameter and insert type to match the specific application.

Can I use face milling cutters on CNC machines?

Absolutely. Face milling cutters are widely used in CNC milling applications due to their compatibility with automated tool changers and high-speed spindles.

How often should inserts be replaced?

Inserts should be replaced once wear becomes visible or when machining quality declines. It's better to replace inserts proactively to avoid compromising surface quality or causing tool failure.

Conclusion

Face milling cutters are fundamental tools that ensure efficiency, precision, and versatility in machining. Their specialized design allows for superior material removal and surface finishing across a range of metals. Whether you are dealing with large industrial components or intricate machine parts, face milling cutters provide the reliability and consistency that modern manufacturing demands.
