Turning inserts are the backbone of efficient metal cutting operations in CNC and manual lathe machining. They define how a material is shaped, the quality of the surface finish, tool life, and cutting efficiency. Among the most common distinctions in turning inserts lies the design orientation—positive turning inserts and negative turning inserts. While the names may sound simple, their differences are crucial in determining application suitability, cost-effectiveness, and machining results.
In this article, we will explore what separates positive and negative turning inserts, analyze their geometry, application cases, strengths and weaknesses, and answer some frequently asked questions. Whether you're a machinist, procurement manager, or mechanical engineer, understanding these differences is essential for optimizing your turning operations.
At the heart of the difference between positive and negative turning inserts is geometry, particularly the rake angle. This angle determines the cutting forces, chip flow, and energy required for material removal.

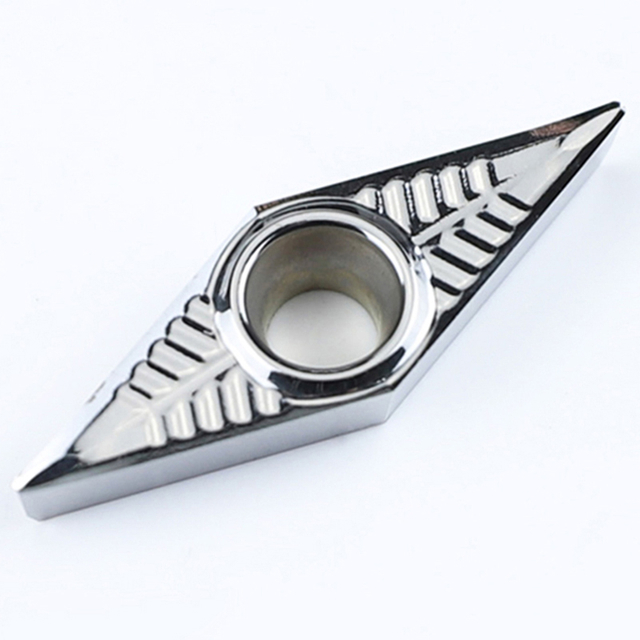

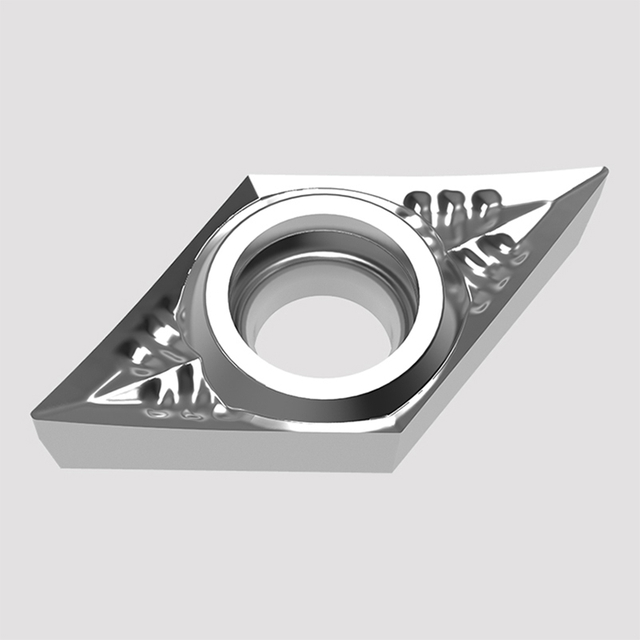

A positive turning insert typically has a rake angle greater than 0°, often between +5° to +20°. These inserts are thinner and feature a wedge-like shape, allowing the cutting edge to engage the material with less cutting resistance. This makes them ideal for:
Low-power machines
Thin-walled or flexible workpieces
Precision machining
Interrupted cuts
Because of their sharp edge and light cutting forces, positive inserts help reduce vibrations, minimize tool wear in delicate jobs, and improve surface finish.

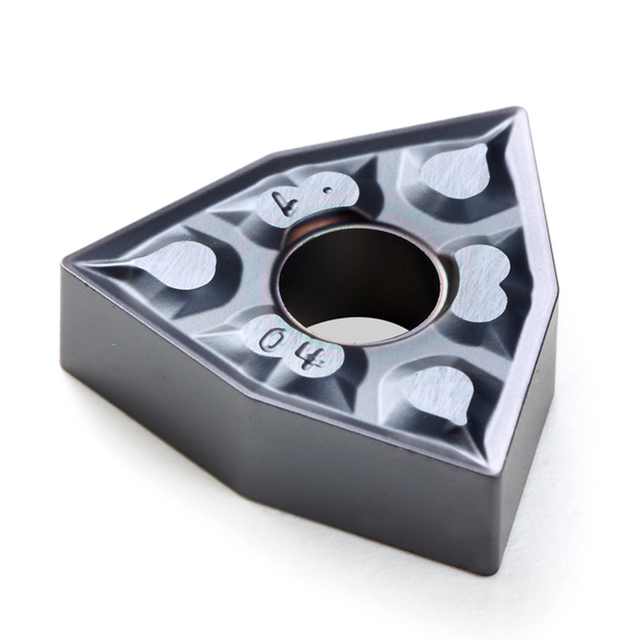

A negative turning insert usually has a rake angle of 0° or less (commonly -5° to -11°). These inserts have symmetrical or square-like geometry, allowing the use of multiple cutting edges (typically 6–8 per insert). Their robust shape supports heavy-duty machining, aggressive cutting depths, and roughing operations.
Negative inserts are better suited for:
High-volume production
Cast iron and high-strength steels
Long tool life requirements
Heavy roughing with high feed rates
Despite requiring higher cutting forces, negative inserts offer superior strength and durability.
To clearly compare the two types, here’s a breakdown of their major differences in table format:
| Feature | Positive Turning Insert | Negative Turning Insert |
|---|---|---|
| Rake Angle | Positive (> 0°) | Negative (≤ 0°) |
| Cutting Force | Lower | Higher |
| Chip Flow | Smoother | May generate thicker chips |
| Insert Shape | Wedge-shaped | Symmetrical/square/trapezoidal |
| Edge Count | Typically 2–4 | Typically 6–8 |
| Application | Finishing, light-duty machining | Roughing, heavy-duty machining |
| Machine Compatibility | Low-horsepower or flexible lathes | Rigid, high-power machines |
| Surface Finish Quality | Excellent | Moderate to good |
| Vibration Resistance | Better for unstable setups | Better for stable setups |
Understanding these parameters helps users select the right tool for the job and avoid common machining problems like chatter, poor surface finish, or premature tool failure.
Positive inserts shine in specific machining contexts. They are often the go-to choice when dealing with materials prone to deformation or when using machines with limited spindle power. Their low cutting resistance is especially valuable in operations involving thin-walled tubes, small parts, or exotic metals like aluminum and titanium.
Reduced tool pressure: Prevents workpiece deflection or vibration.
Excellent surface finish: Due to the sharp cutting edge.
Lower energy consumption: Ideal for energy-efficient machining.
Effective chip evacuation: Especially in finishing passes.
These inserts are preferred in aerospace and medical industries where tight tolerances and surface quality are paramount.
However, one limitation is their lower durability—positive inserts wear out faster under heavy-duty conditions. Therefore, they are generally avoided in roughing or interrupted cuts with hard materials.
Negative inserts are the workhorses of modern metalworking. Their strong cutting edges and ability to withstand high pressure make them ideal for heavy roughing, batch production, and machining hard materials like cast iron or stainless steel.
Durability: Withstands heavy loads and thermal stresses.
Cost-effective: Multiple usable edges extend tool life.
Stability: Better suited for rigid machines and stable setups.
High feed rates: Supports aggressive material removal.
They are widely used in automotive, heavy machinery, and large-part manufacturing where speed, consistency, and tool economy matter more than fine surface finish.
However, they are not suitable for delicate components, and their higher cutting forces can lead to vibration or deflection in lightweight setups.
Answer: Yes, but it depends on the job. While positive inserts are often used in less rigid setups, they also perform well in finishing operations on rigid machines, especially when the goal is a smoother surface or better dimensional accuracy.
Answer: Generally, yes. Despite their slightly higher initial cost, negative inserts offer more cutting edges per insert, reducing the need for frequent replacements and lowering cost per part over time.
Answer: You may experience vibrations, tool chatter, and even machine overload. These issues can reduce surface finish quality and damage the tool or workpiece.
Answer: Positive turning inserts are better for CNC precision machining due to their low cutting force, high accuracy, and excellent surface finish, especially for complex geometries and fine tolerances.
Selecting the correct turning insert is not just a matter of geometry—it’s about matching the tool to your machining context, material type, and operational goals. Positive turning inserts offer precision, smooth finishes, and are ideal for delicate operations. Negative turning inserts, on the other hand, deliver durability, cost-efficiency, and high productivity in demanding tasks.
Knowing when and how to use each type can significantly enhance your productivity, reduce tooling costs, and improve product quality. Whether you're dealing with aerospace-grade titanium or cast iron engine blocks, the right turning insert makes all the difference.
