What Is a Threading Insert?

In the world of precision manufacturing and CNC machining, the threading insert plays a crucial role. Whether you're involved in mass production or custom part fabrication, threading inserts are indispensable tools used for cutting threads into materials with consistent accuracy. But what exactly is a threading insert, and why is it so critical in modern industry?

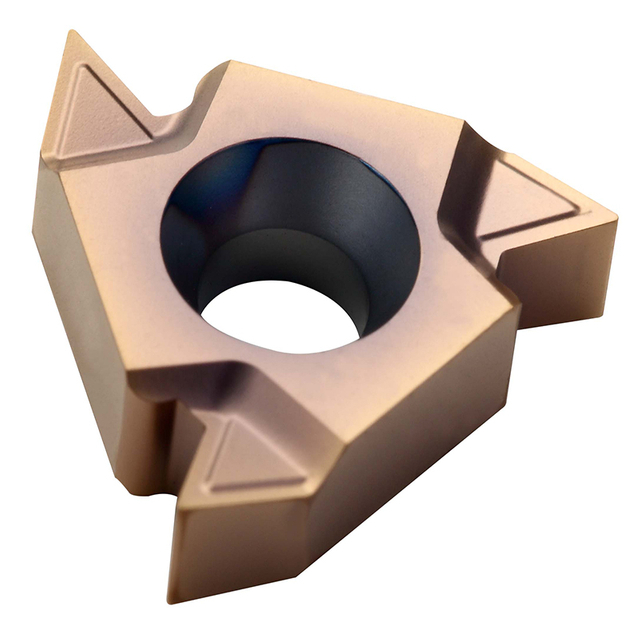

A threading insert is a replaceable cutting tool designed to cut internal or external threads on components made of metal, plastic, or composite materials. Typically mounted on a tool holder, threading inserts can be used in lathes or turning centers, offering exceptional precision, repeatability, and surface finish. Their application spans across automotive, aerospace, oil & gas, and general engineering sectors.

Let’s dive deep into the design, functionality, types, and practical applications of threading inserts—along with answers to some frequently asked questions.

How Do Threading Inserts Work?

Mechanism Behind Thread Cutting

Threading inserts function through a single-point cutting process, where a specially shaped insert gradually forms a thread profile on the workpiece. The insert is mounted on a tool holder, which is then programmed on a CNC lathe or turning machine to follow the desired threading path.

During operation, the threading insert removes small amounts of material in successive passes. These incremental cuts reduce heat buildup and maintain high precision. The angle, depth, and pitch of the thread are defined by both the insert geometry and the CNC programming parameters.

The key components in this process are:

• Insert Geometry – The insert's profile corresponds to the desired thread standard (e.g., ISO, UN, ACME).

• Tool Holder – Holds the insert securely and provides the necessary feed direction.

• Coolant Flow – Prevents overheating and helps with chip evacuation.

Through careful planning and optimal parameters, threading inserts deliver unmatched efficiency, especially in high-volume operations where tool life and consistency are paramount.

Types of Threading Inserts

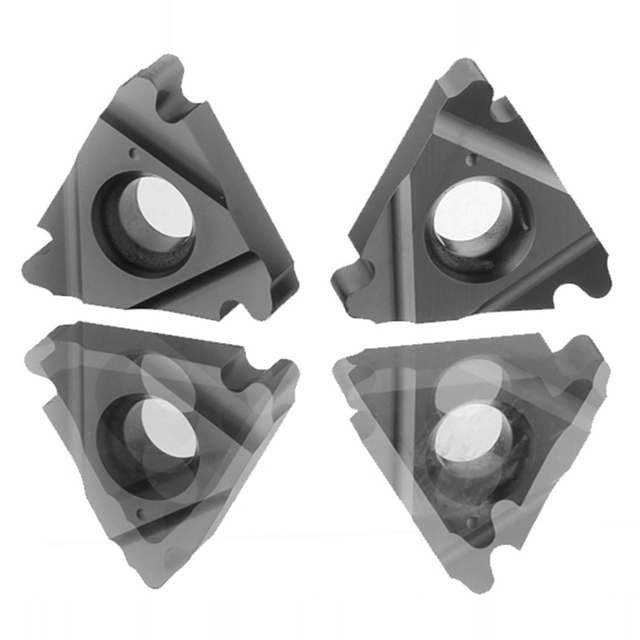

External vs. Internal Threading Inserts

There are various types of threading inserts available, classified by their application, shape, and threading standard. The most common division is based on external and internal threading needs.

Each type comes in multiple shapes and configurations to match specific thread profiles:

• V-Profile (60°): Most common; used for ISO and UN threads.

• Buttress Thread: High load-bearing capacity in one direction.

• Acme Thread: Strong, trapezoidal profile for power transmission.

• Trapezoidal Thread: Common in lead screws.

Moreover, threading inserts vary by hand (right-hand or left-hand), cutting edge count, and coating to suit different materials and cutting conditions.

Benefits of Using Threading Inserts

Threading inserts bring multiple advantages to modern machining, making them a preferred solution over traditional threading taps or dies.

Efficiency, Cost, and Accuracy

1. Replaceability
   Inserts can be easily replaced without discarding the tool holder, saving cost over time.

2. Consistency and Precision
   CNC-compatible inserts ensure repeatable thread profiles with minimal deviation, even in complex geometries.

3. Versatility
   A single insert can cut various thread pitches with slight programming adjustments, eliminating the need for multiple tools.

4. Material Adaptability
   Threading inserts are available with coatings such as TiN or TiAlN to improve wear resistance and performance on stainless steel, hardened alloys, or soft materials.

5. Time Efficiency
   High-speed threading operations become possible without compromising surface quality or dimensional accuracy.

The integration of threading inserts into production lines greatly reduces tool change time and boosts overall throughput—an essential factor for competitive manufacturing.

Threading Insert Materials and Coatings

Threading inserts are manufactured from carbide, ceramic, CBN (Cubic Boron Nitride), or HSS (High-Speed Steel). Among these, carbide inserts dominate due to their balance of hardness, toughness, and cost-effectiveness.

Common coatings applied to threading inserts include:

• TiN (Titanium Nitride) – Increases surface hardness and reduces friction.

• TiAlN (Titanium Aluminum Nitride) – Offers superior thermal resistance.

• Al2O3 (Aluminum Oxide) – Provides oxidation and abrasion resistance.

These coatings extend tool life, minimize tool wear, and enhance the overall efficiency of the machining process.

Choosing the Right Threading Insert

Selecting the right threading insert depends on several key factors:

• Thread Form Standard: ISO, UN, NPT, BSP, ACME, etc.

• Material of Workpiece: Determines insert material and coating.

• Machine Compatibility: Insert shape and size must match tool holder specs.

• Thread Pitch and Diameter: Defines the thread cutting geometry needed.

• Volume of Production: High-volume runs benefit from durable, coated inserts.

Choosing an incorrect threading insert can lead to poor surface finish, thread inaccuracy, and premature tool failure. For best results, always match the insert specifications with application requirements.

Frequently Asked Questions (FAQ)

Q1: What is the difference between a threading insert and a tap?

A tap is a traditional tool used to cut internal threads manually or in low-speed machines. A threading insert, on the other hand, is used in CNC machines for high-speed, precision thread cutting—both internal and external.

Q2: Can threading inserts be resharpened?

No. Threading inserts are designed to be replaceable rather than resharpened. Once the cutting edge is worn out, the insert should be discarded.

Q3: How do I know when to replace a threading insert?

Look for signs like:

• Poor surface finish on threads

• Inconsistent thread pitch

• Increased machining noise or vibration

• Insert edge chipping or flaking

Q4: Are threading inserts reusable?

Threading inserts with multiple cutting edges (like 2-edged or 3-edged designs) can be rotated for reuse until all edges are worn. However, each edge is not resharpenable.

Q5: What is the ideal cutting speed for threading inserts?

Cutting speed depends on the insert material and the workpiece. For carbide inserts on mild steel, speeds of 80-200 m/min are typical. Always consult manufacturer guidelines and adjust based on coolant and machine stability.

Conclusion

The threading insert is a cornerstone of modern machining, offering unmatched versatility, precision, and efficiency. Whether you're threading stainless steel pipes in oil refineries or crafting intricate aerospace components, choosing the right insert significantly impacts your productivity and product quality.

From understanding how they work to selecting the correct type for your application, mastering threading inserts is essential for any engineer, machinist, or CNC operator aiming to achieve excellence in thread cutting.
