What Is the Best Shape for a Carbide Insert?

Introduction

Carbide inserts are essential tools in modern machining and metal cutting operations. Made from extremely hard materials, these inserts are designed to handle high-speed cutting while maintaining dimensional accuracy, surface finish, and longevity. However, one of the most critical factors in determining the performance of a carbide insert is its shape. The shape directly impacts chip control, cutting efficiency, and tool life. Selecting the wrong shape can lead to increased wear, poor finish, or even tool breakage. This article explores the most effective carbide insert shapes, how to choose the right one for different machining needs, and what factors should be taken into account to maximize productivity and cost-efficiency.

Why Insert Shape Matters in Machining

Carbide inserts come in various geometries—each with specific cutting characteristics and applications. The insert's shape determines several key operational parameters:

• Strength of the cutting edge

• Depth of cut capability

• Number of cutting edges per insert

• Insert indexing ease

• Chip evacuation performance

While round inserts offer maximum strength and versatility, triangular or diamond-shaped inserts often allow better access to intricate parts. For high-volume, precision work, choosing the correct shape is not a matter of convenience—it’s an absolute requirement.

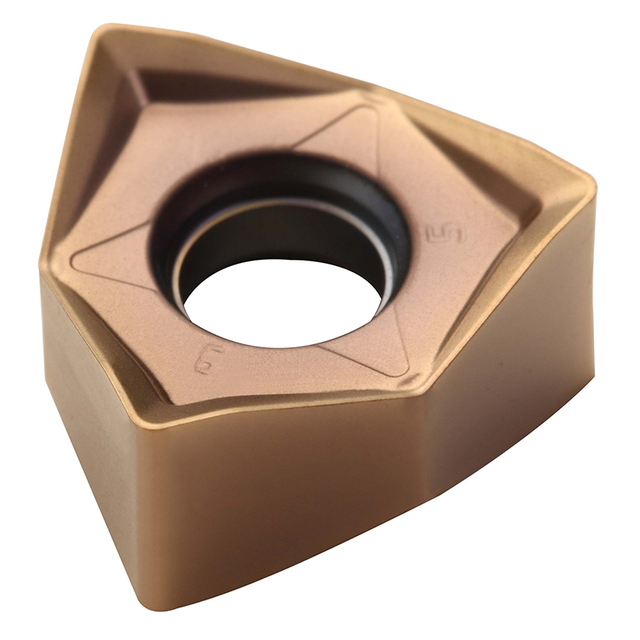

Common Shapes of Carbide Inserts and Their Applications

Below is a table summarizing popular carbide insert shapes and their primary applications:

Understanding these shapes allows manufacturers to optimize performance based on the specific material and type of cut required.

The Best Carbide Insert Shape for Different Machining Needs

For General Turning: C-Shape (80° Diamond)

The C-shape carbide insert is often considered the most versatile in general turning operations. Its 80° cutting angle provides an excellent balance between strength and accessibility. This geometry can handle both roughing and finishing tasks, making it the go-to insert for a wide range of materials such as carbon steel, stainless steel, and cast iron.

In environments where both roughing and finishing need to be performed with minimal insert changes, the 80° diamond offers unmatched efficiency. It also provides enough edge strength to resist chipping in high-feed conditions while still delivering a clean surface finish.

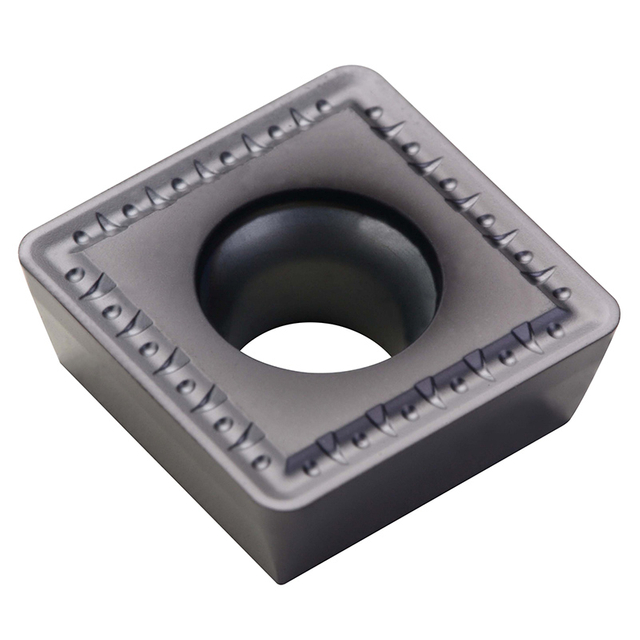

For Heavy Roughing: S-Shape (Square)

When dealing with heavy material removal, square carbide inserts shine. With four strong cutting edges and wide support angles, the S-shape insert is best suited for rough cuts and tough materials like forged steel or heat-treated alloys. The extra material at each corner enhances insert stability, minimizing vibrations and insert breakage.

However, square inserts may not be ideal for finishing passes or tight contours due to their limited access angles. Operators using square inserts often pair them with other geometries for secondary operations.

For Profiling and Complex Contours: R-Shape (Round)

Round inserts provide the highest cutting edge strength among all geometries. Because of their continuous cutting edge and rounded radius, they distribute cutting forces evenly, making them ideal for interrupted cuts and profiling operations. They’re frequently used in die and mold industries where intricate shapes and deep profiles are common.

Their downside is that round inserts lack sharp corners, which can limit their usefulness for tight shoulder cuts. However, for materials like titanium and Inconel—where insert breakage is a major concern—round inserts drastically improve tool life.

Selecting the Optimal Shape: What to Consider

Choosing the best shape for a carbide insert depends on multiple operational and economic factors. Here’s what manufacturers and CNC operators must evaluate:

1. Material of the Workpiece

Different materials impose different loads on the insert edge. Harder materials like stainless steel or high-nickel alloys require stronger, more robust edges such as those found in round or square inserts. Softer materials may benefit from sharper inserts like the triangle or diamond for better finish and reduced cutting forces.

2. Type of Machining Operation

Turning, facing, grooving, and threading all require unique shapes. For instance, threading inserts typically use very specialized geometries, while general turning favors C or T shapes. The shape must match the direction and depth of cut.

3. Surface Finish Requirements

In applications demanding fine finishes, such as aerospace components or medical device parts, insert shapes with small nose radii and sharp corners (like diamond or triangular) perform better. In contrast, roughing doesn’t need high finish, so stronger geometries are preferred.

4. Insert Economy

Shapes like squares and octagons offer more cutting edges per insert. This means fewer insert changes and lower tool costs over time. In high-production environments, insert economy can significantly impact profitability.

Frequently Asked Questions About Carbide Insert Shapes

Q1: Is a round insert always better than a square insert?

Not necessarily. While a round insert has higher edge strength, it lacks angular versatility. Square inserts are better for straight-edge roughing, while round inserts are ideal for complex profiling and interrupted cuts.

Q2: What shape of insert gives the best surface finish?

Diamond-shaped inserts (particularly the 55° and 35° variants) often provide the best surface finish due to their sharp edges and reduced contact area. These are commonly used in fine turning and finishing applications.

Q3: Are more cutting edges always better?

It depends. Inserts like octagons or squares offer more edges per insert, increasing tool life. However, these shapes may not be suited for all operations. Functionality should always take priority over economy.

Q4: Can one insert shape handle both roughing and finishing?

Yes. The 80° diamond insert (C-shape) is designed for versatility and can perform both roughing and finishing on various materials, making it one of the most popular insert geometries.

Conclusion

So, what’s the best shape for a carbide insert? There’s no one-size-fits-all answer. The 80° diamond (C-shape) often stands out as the most balanced, but specific operations may demand different geometries. Round inserts excel in strength and profiling, while square inserts are unmatched for heavy roughing. Ultimately, the best choice depends on the material, application, desired surface finish, and cost-efficiency requirements.

Selecting the correct carbide insert shape isn’t just a technical choice—it’s a strategic decision that can significantly enhance machining performance and bottom-line profitability.
